Photovoltaic bracket test instructions

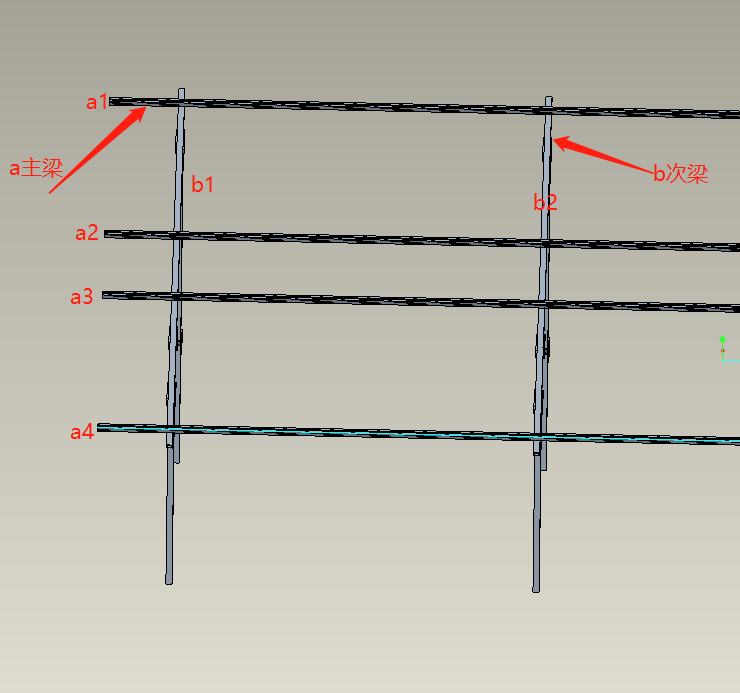

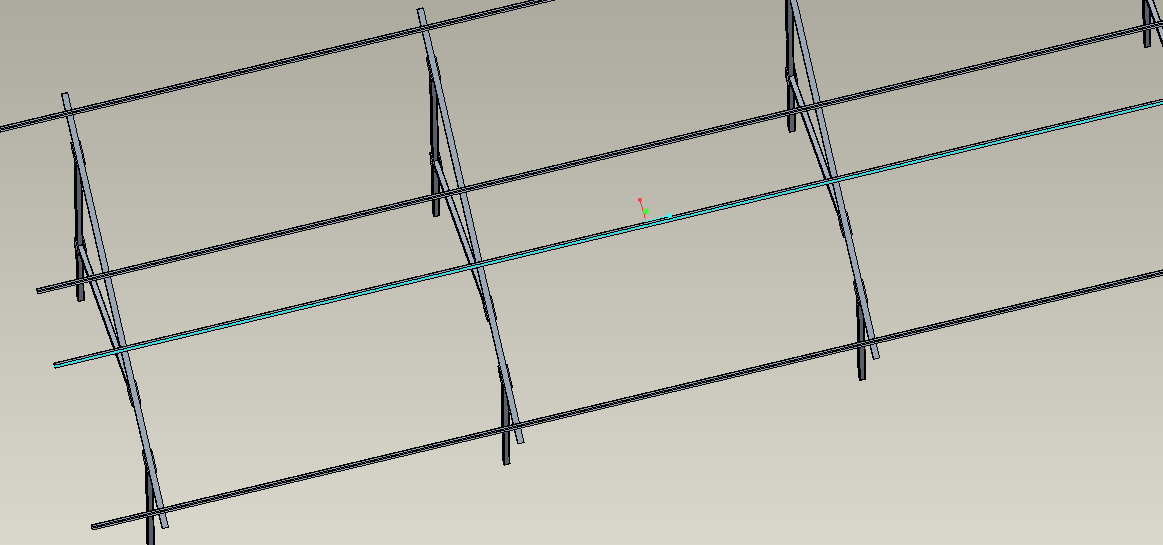

1、Simple diagram of the bracket

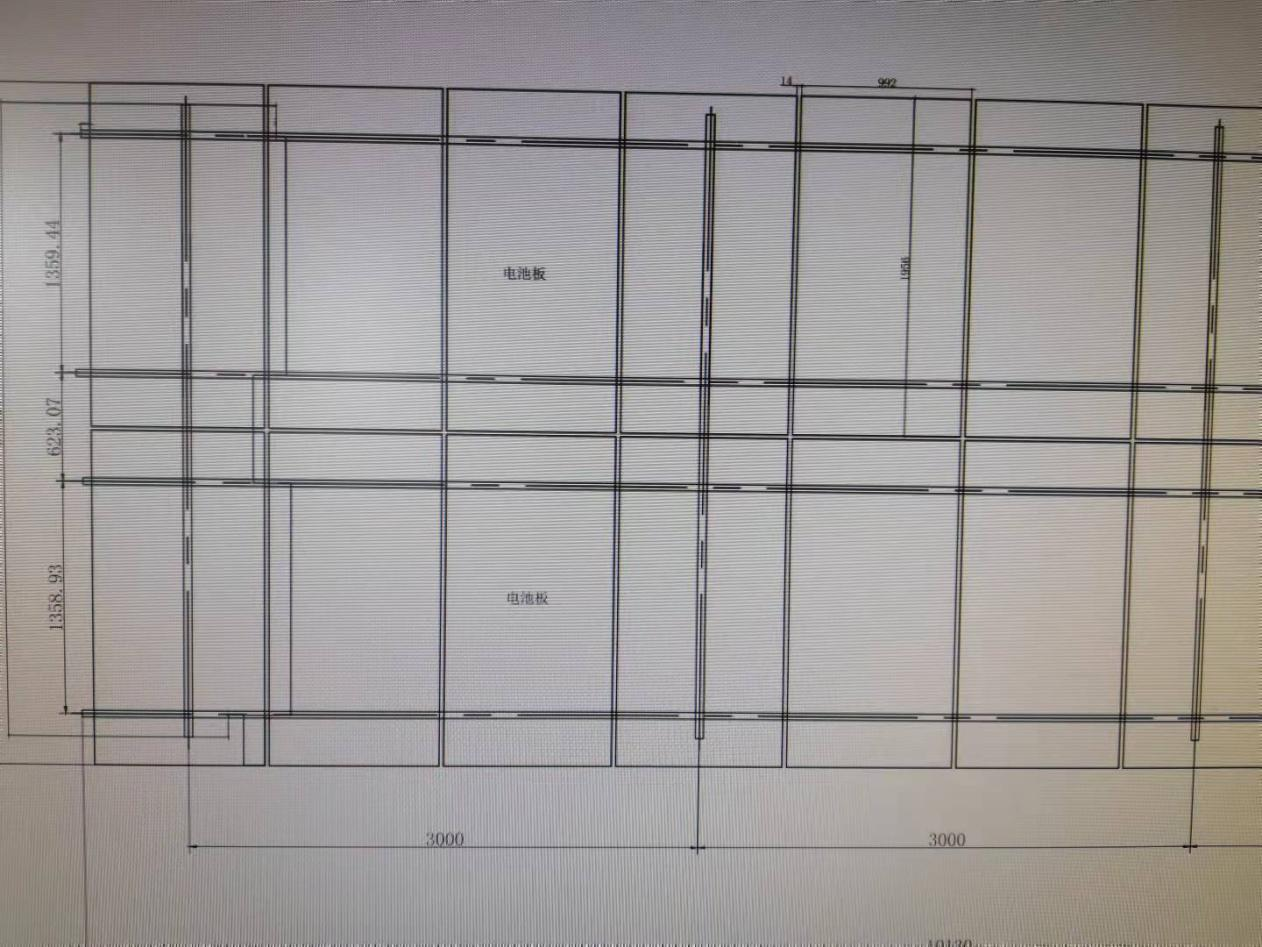

2、Simple diagram of panel laying
3、Stand size description
aThe length of the main beam is 5.5 m.
a span between a1 and a2 is 1.35 m.
b secondary beam length 3.65m.
The span between b1 and b2 is 3.5m (minimum span).
The main beam is on the uppermost level and the secondary beam is on the second level.
The recommended profiles are 90*40*7 for the main beam and 60*60*5 for the secondary beam.
Four 1.95m*1m PV panels are placed on the frame composed of a1, a2, b1 and b2.
a3, a4, b1, b2 composed of four 1.95m * 1m photovoltaic panels on the frame.
The weight of each PV panel is 30kg, the total weight is 240kg, considering the wind load, the bracket should carry 480kg weight.
The connection between the main beam and the secondary beam can be fixed by simple nuts.
