Core function

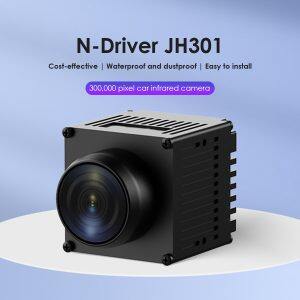

All-weather infrared imaging
Break through the dark, haze, strong light and other restrictions, provide clear thermal imaging images, support 24 hours continuous monitoring.
Intelligent object recognition
On-board mode: real-time detection of pedestrians/vehicles and early warning;
Drone mode: Use AI algorithms to identify wild animals (such as deer, bears, etc.), mark targets and trigger alarms.
Uav cooperative operation
Support UAV equipped with infrared camera, through RCA interface or wireless transmission to achieve data linkage, extend the monitoring range to 180 meters.
Anti-jamming and protection
Military grade electromagnetic interference resistant design, IP67 water and dust resistant, adaptable to extreme weather and complex terrain.
Technical parameter
Parameter specification

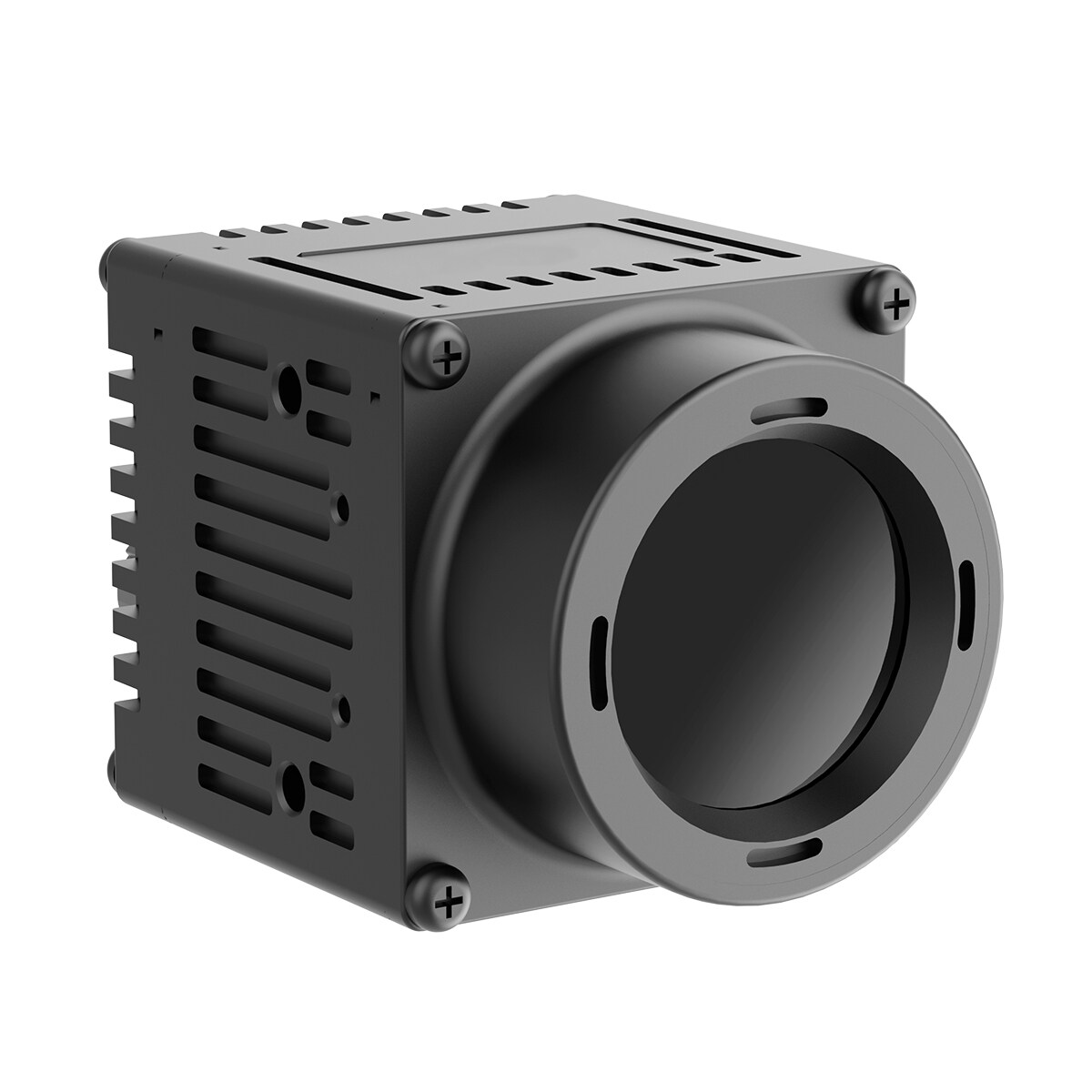

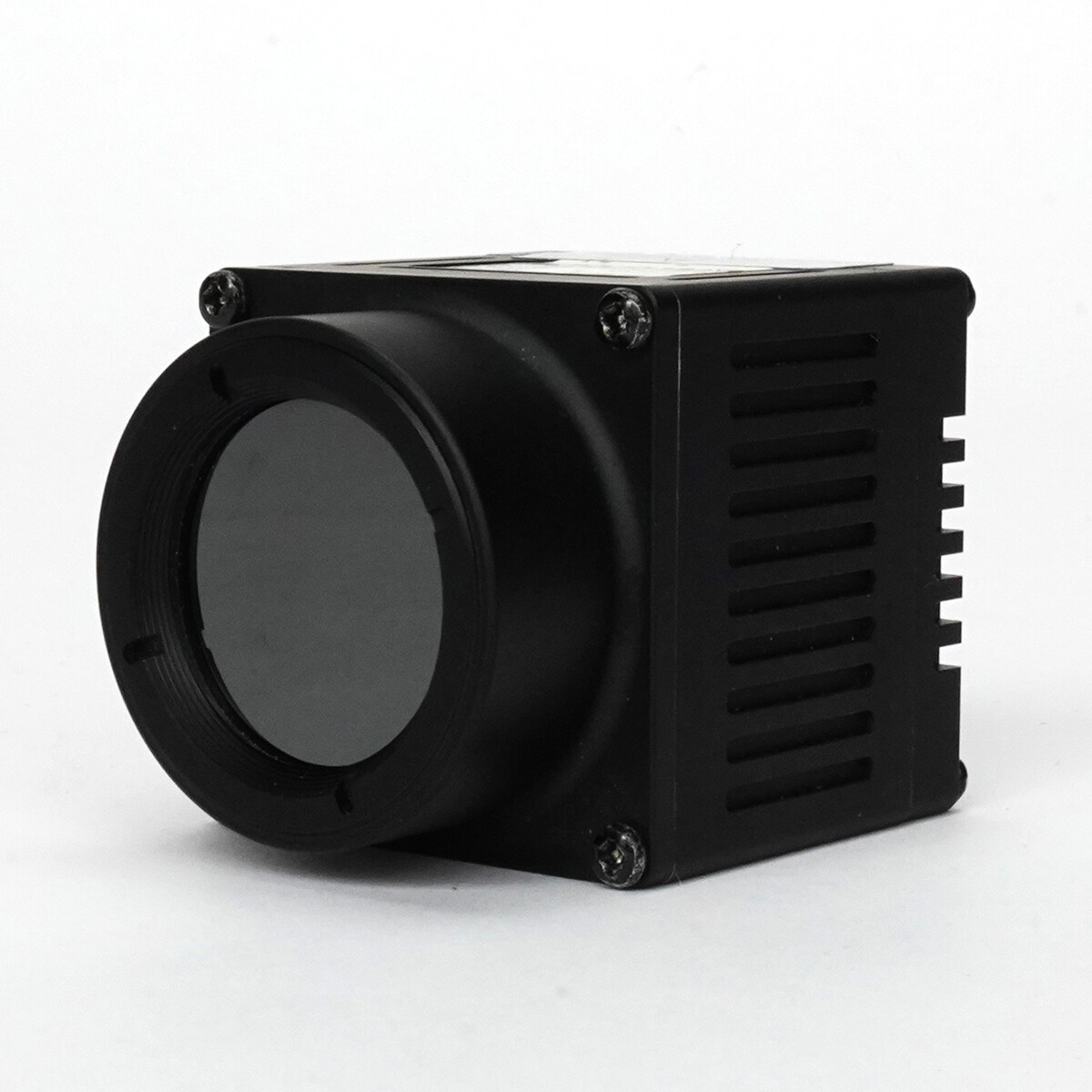

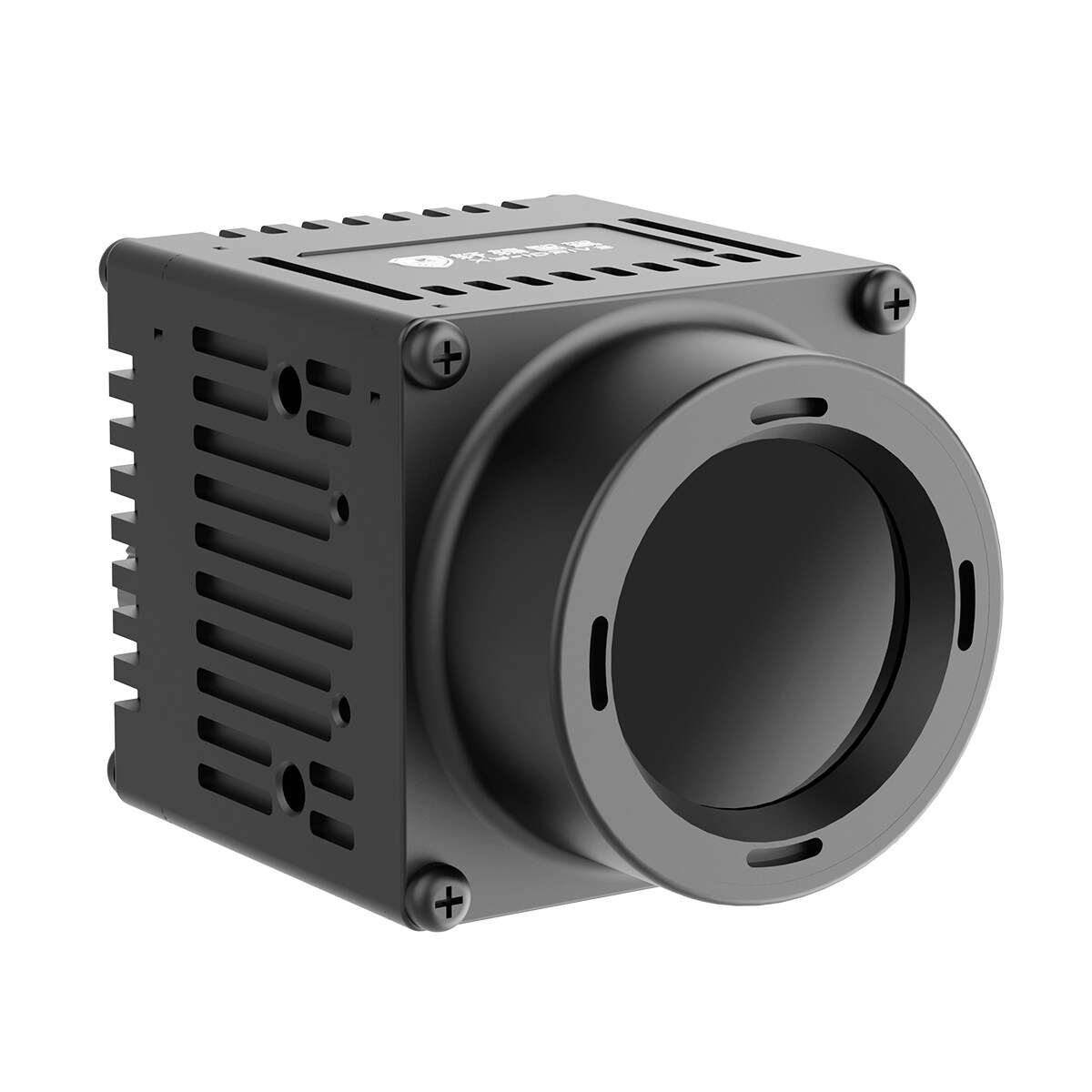

Detector Type Vanadium Oxide Uncooled Infrared focal Plane Detector (384×288)
Response band 8~14μm
Detection distance Vehicle: pedestrians 90m, vehicles 180m; Drone mode: up to 180m (depending on flight altitude and environment)

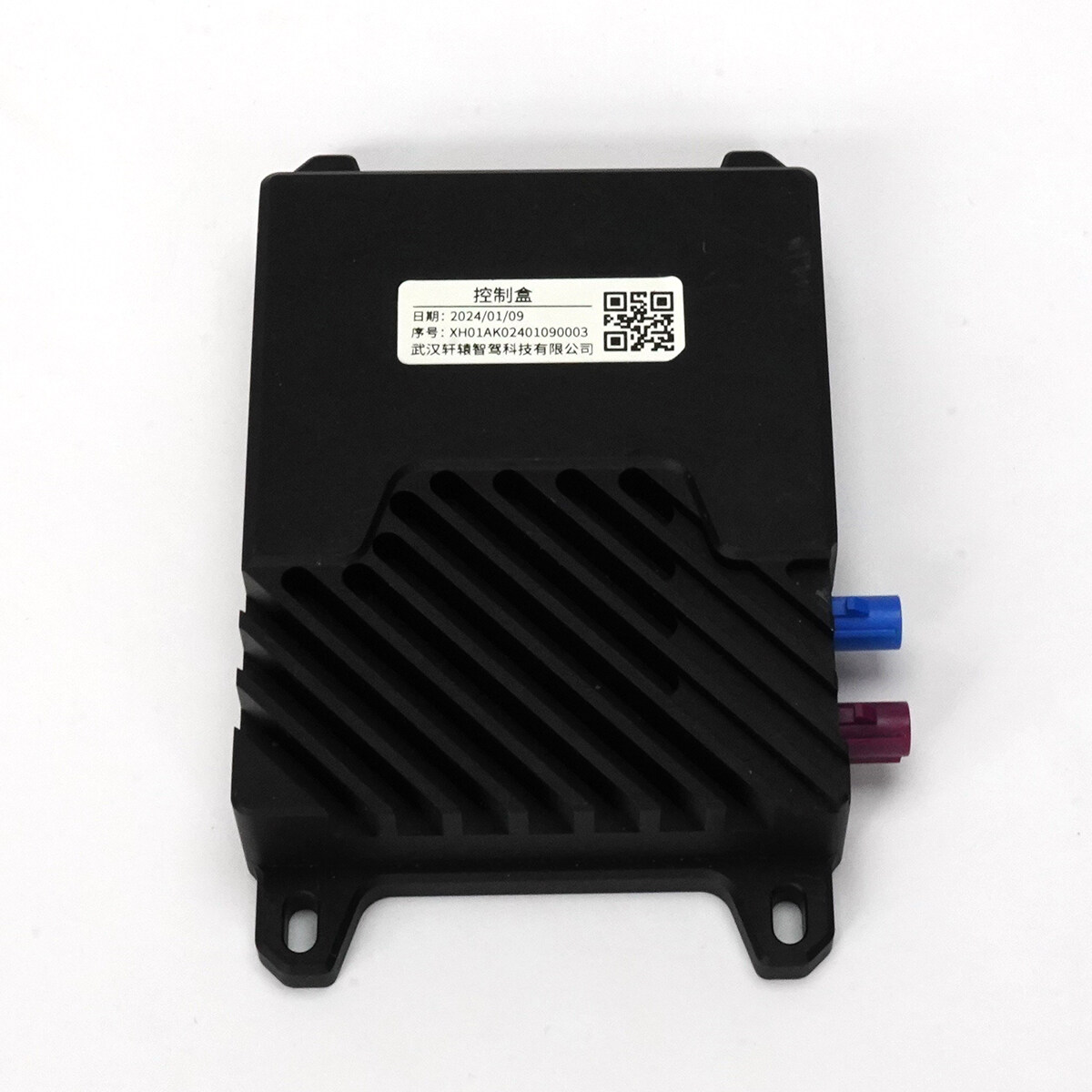

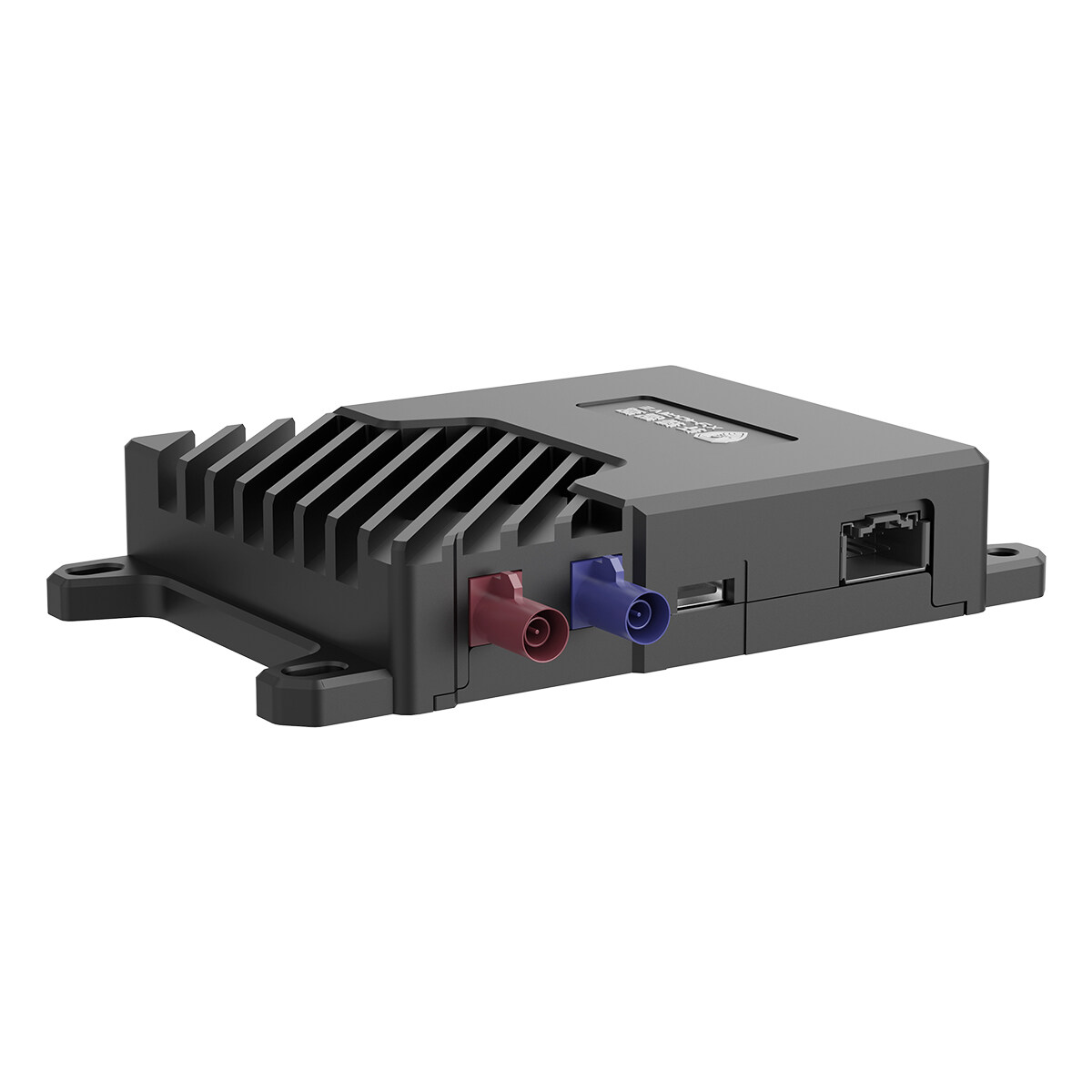

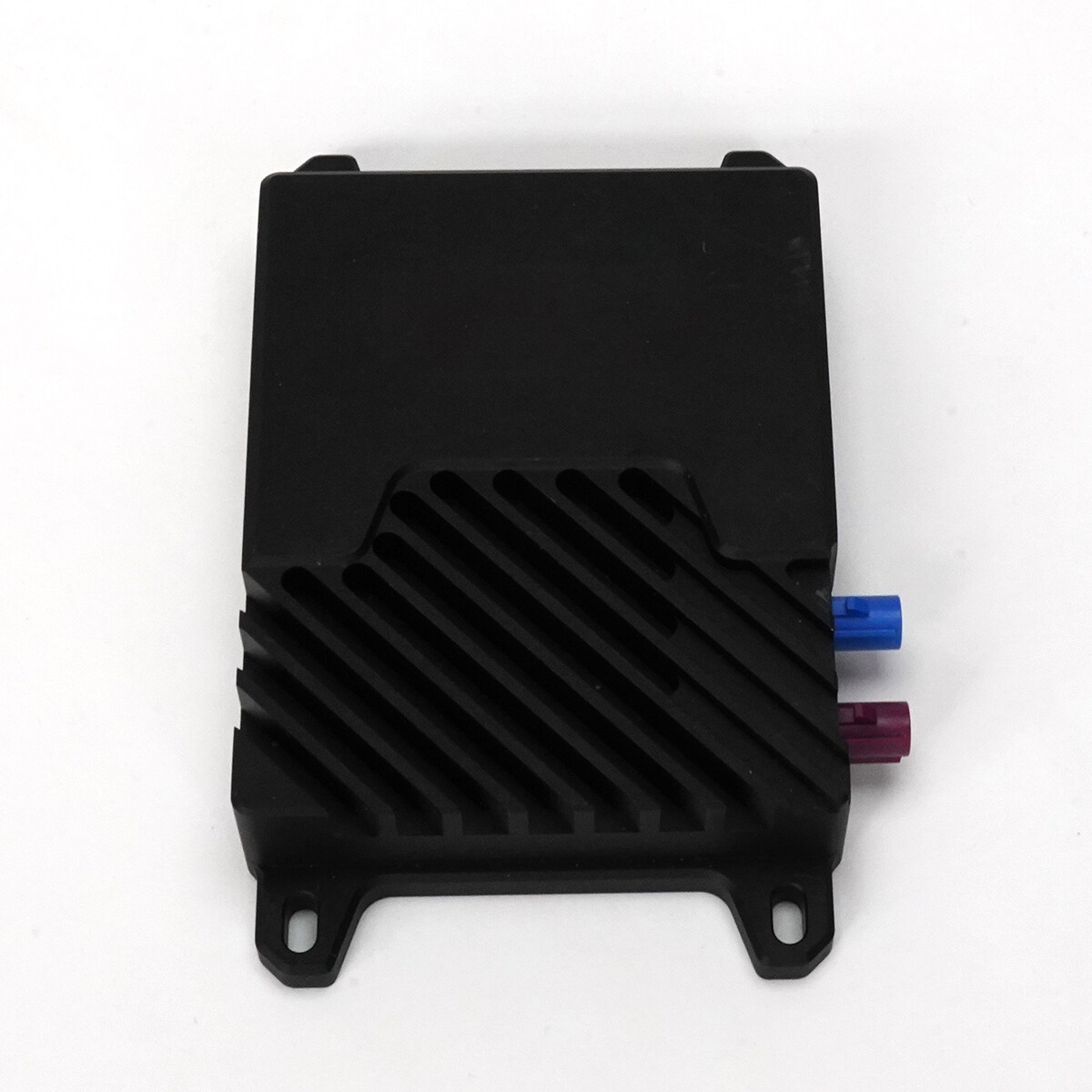

Protection level camera IP67, control box IP5K0
Operating temperature -40°C to + 85°C

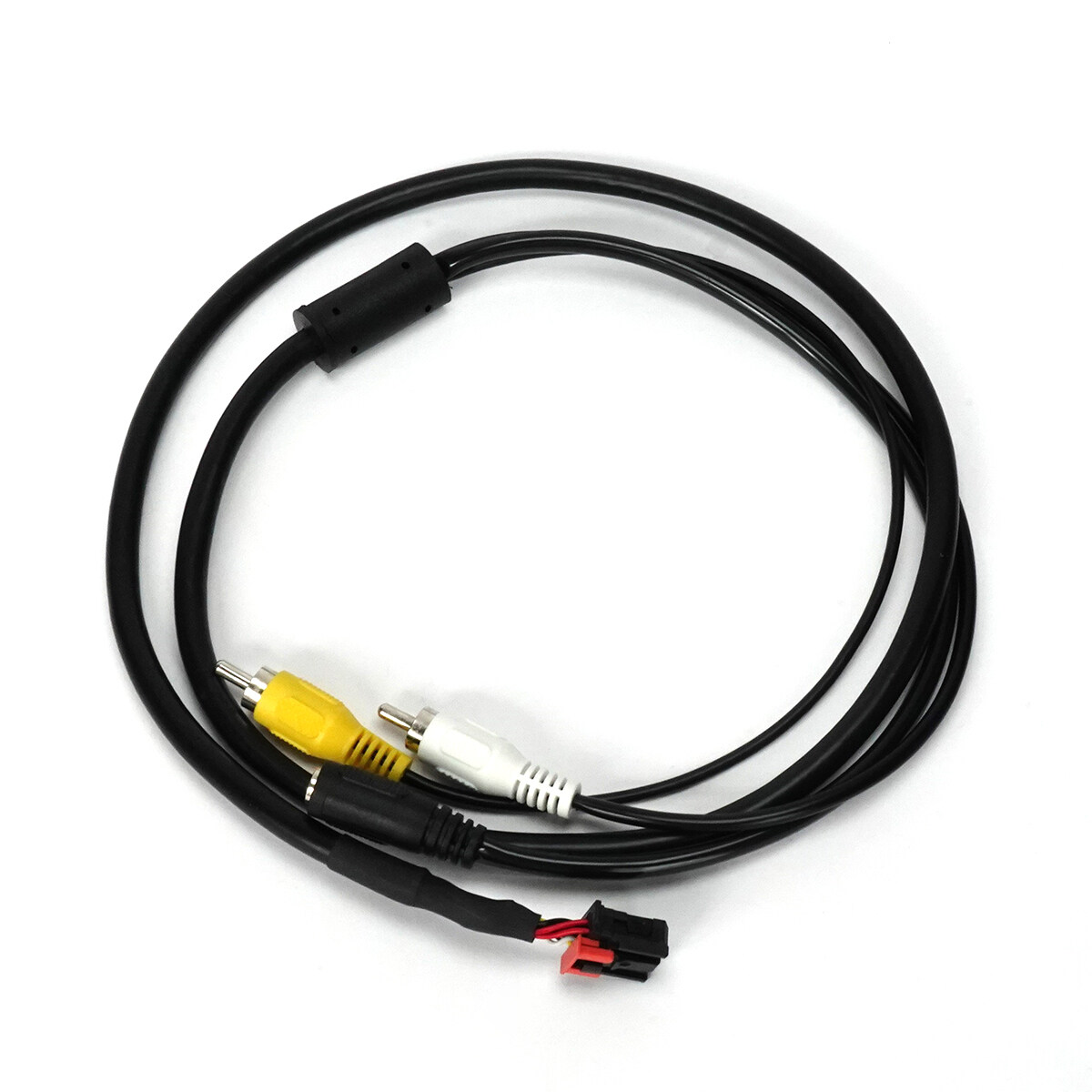

Video Output RCA Lotus Head (supports analog video CVBS)

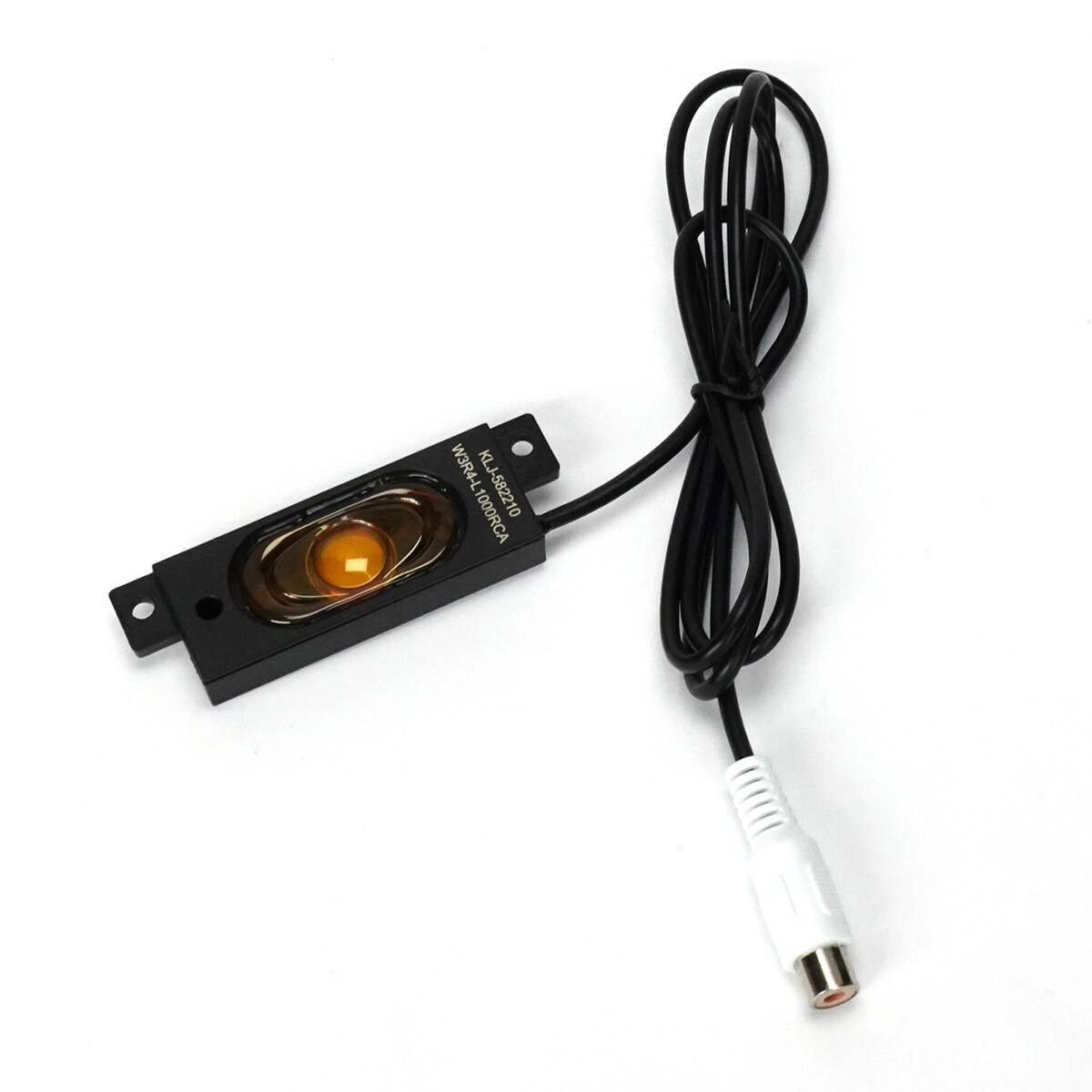

Alarm mode Visual marker (red/yellow box) + sound alarm
