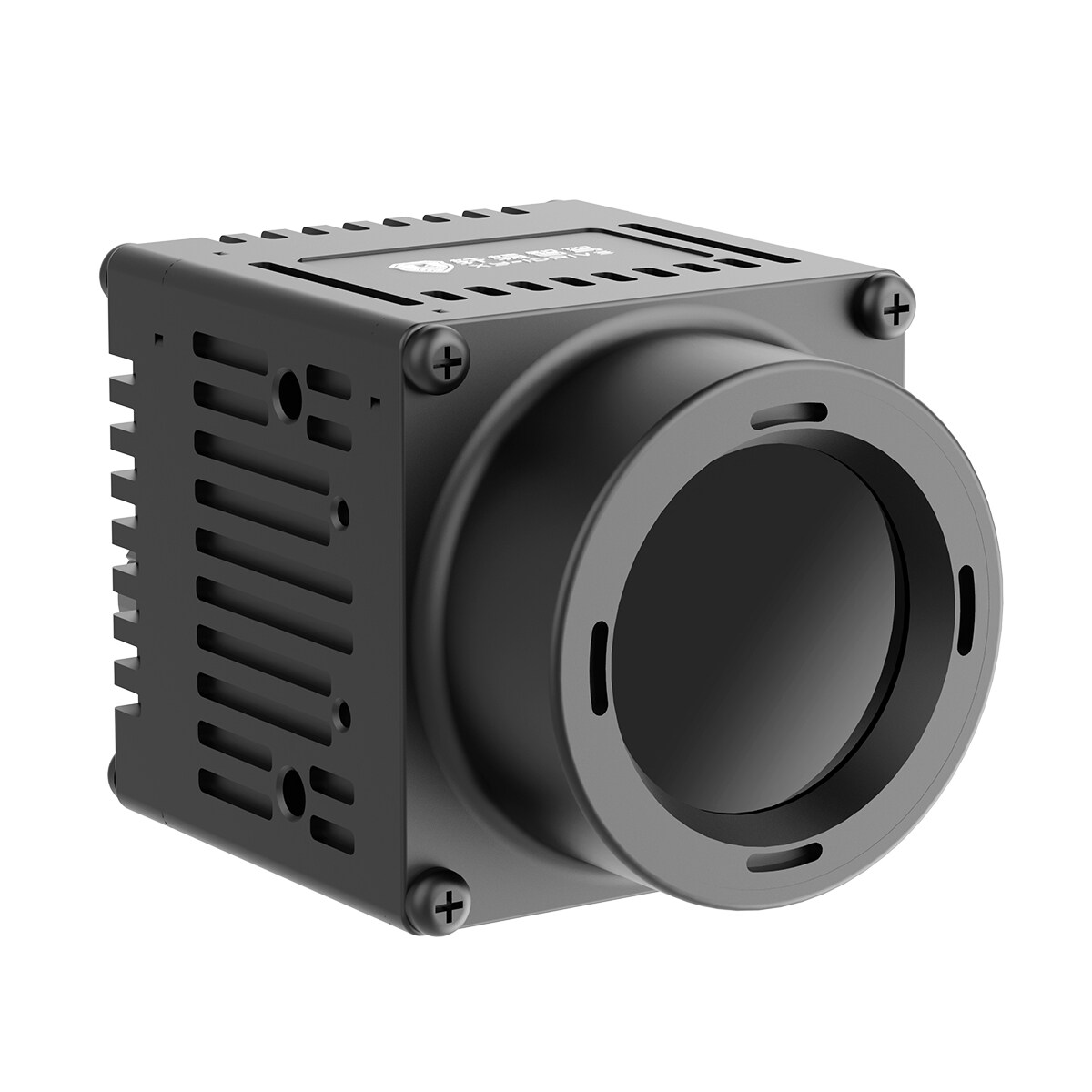

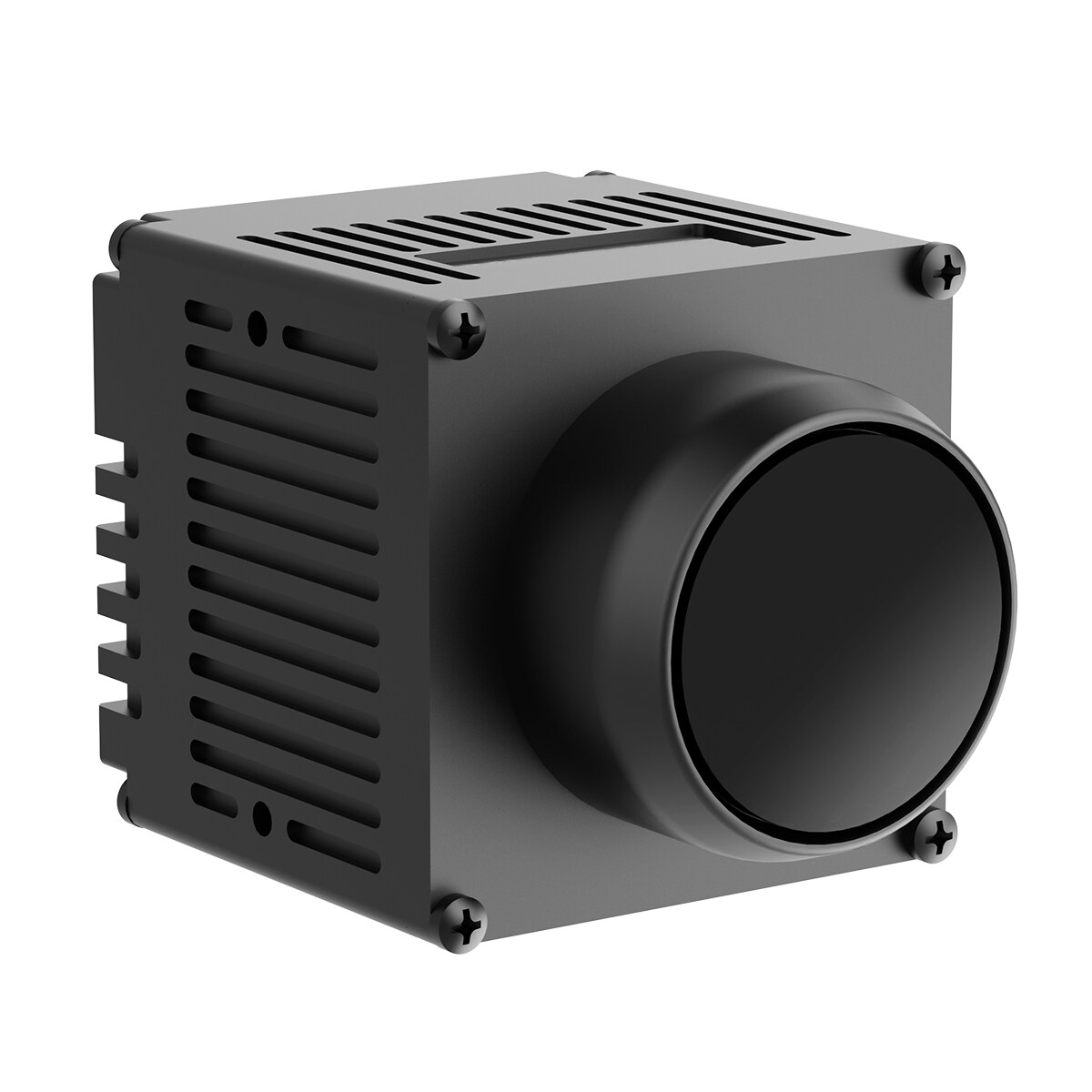

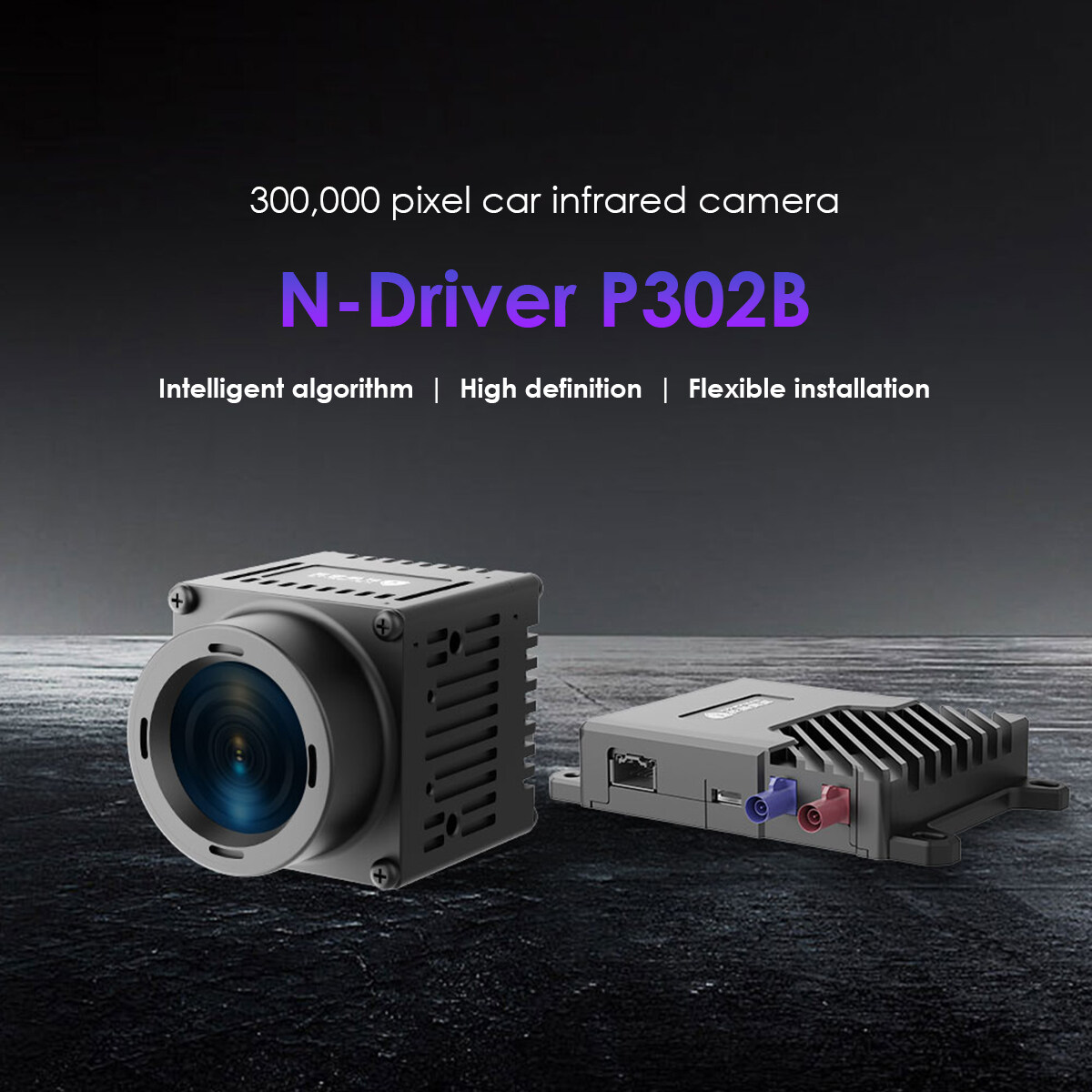

Product Overview

Key Features

1. High-Resolution Imaging
   • 640×512 resolution for detailed thermal imagery.
2. All-Weather Performance
   • IP69-rated to withstand water, dust, and high-pressure 冲洗.
   • Operates in temperatures ranging from -20°C to 70°C.
3. Long-Range Detection
   • Pedestrian detection up to 150m, vehicle detection up to 350m.
4. Smart Functionality
   • Automatic heating for defrosting in cold weather.
   • Anti-glare and fog-penetrating capabilities.

Technical Specifications

Applications

• Special Vehicles: Off-road vehicles, mining trucks, port/airport shuttles.
• Logistics: Freight trucks, 冷链运输车.
• Security: Surveillance in harsh environments.

Installation & Maintenance

• Installation:
  • Mount on front grille, rear, or roof; avoid radiator and speaker.
  • Height range: 40–120cm; angles (roll/pitch/yaw) <3° deviation.
• Maintenance:
  • Clean lens with microfiber cloth; avoid direct contact.
  • Ensure proper voltage (DC9–32V) and avoid frequent power cycles.
