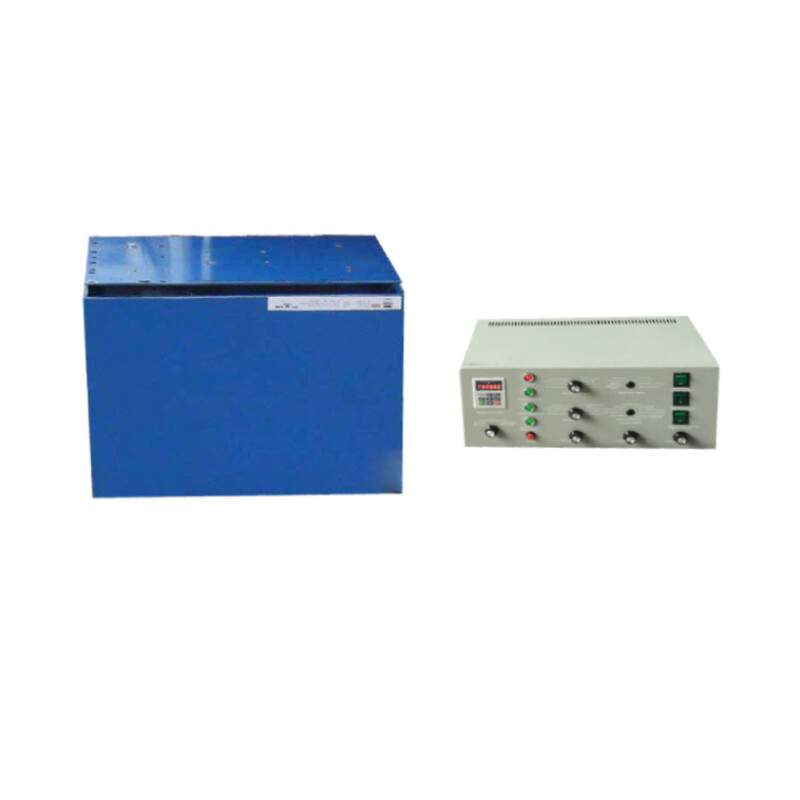

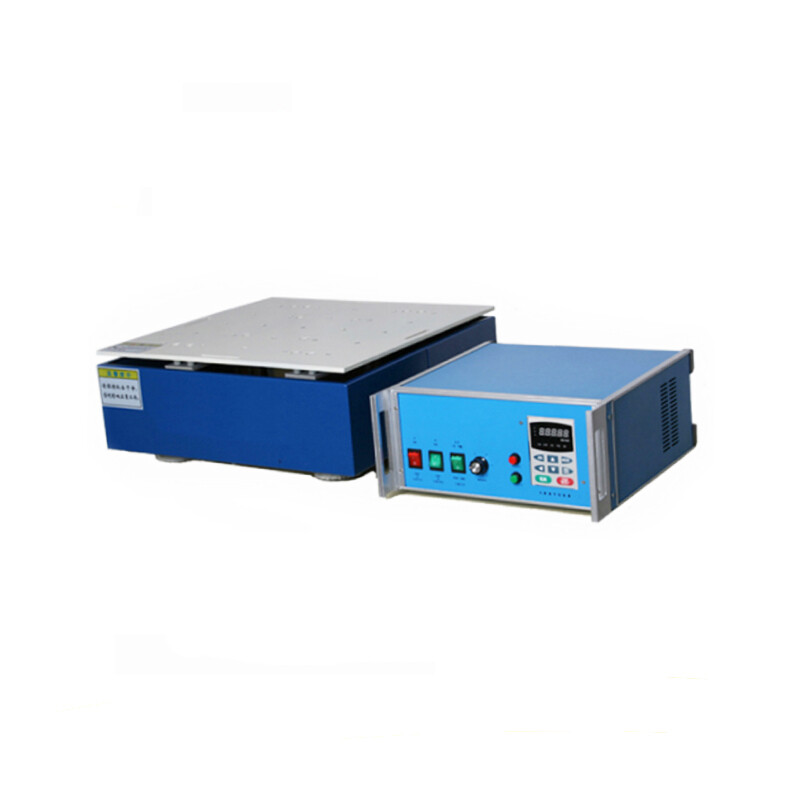

This machine is suitable for electronic, electro-mechanical, optical communications, packaging, auto parts, toys and other industry research, development, quality control and manufacturing. quality control inspection and production line, assembly line. It is more suitable for quality inspection of finished product for improving product quality.
Main functions:
Sine wave (half-wave / full wave), FM, sweep, programmable, frequency-doubling of the number, amplitude, maximum acceleration, time control, 485 Tong Xun interface, simple set acceleration, simple fixed amplitude
Technical parameter:
|
Model |
ZL-1001 |
|
Vibration table size |
50×1×50cm (L*H*W) |
|
Table size |
Vertical 50×20×50cm (L*H*W) |
|
Vibration direction |
Vertical |
|
Max testing load |
0～100（Kg） |
|
FM function（1～400HZ） |
either a frequency in the frequency range must be (maximum acceleration / 20g maximum amplitude / 5mm) |
|
Sweep function（1～400HZ） |
(up frequency / down frequency / time range) can be swept back and forth by setting arbitrarily standard |
|
Programmable Function （1～400HZ） |
1 ~ 15 of each segment can be arbitrarily set (frequency / time) can be recycled |
|
Harmonic function（1～400HZ） |
1 ~ 15 multiply increase ① low to highfrequency ② high to low frequency ③low to high and then to low frequency / can be recycled |
|
Logarithmic function（1～400HZ） |
3 kinds of model number / can be recycled |
|
Vibration Machine frequency（KW） |
1.5 |
|
amplitude(mmp-p) |
0～5mm |
|
Maximun Acceleration |
0～20g |
|
Vibration wave |
Sine wave (half-wave / full wave) |
|
Time control |
Can be installed at any time (seconds) |
|
Supply voltage (V) |
220±20% |
|
Maximum current(A) |
7 |
|
Full-featured computer-controlled (need to purchase) |
it need to buy a adapter if want to control, storage, recording and print by computer. |
|
Precision |
Frequency can display to the 0.01Hz, precision 0.1Hz |
|
Shows the acceleration amplitude (optional) |
if you want to know the value of amplitude, acceleration, maximum acceleration, the exact figure need to purchase this measuring instrument
|
Note: 1g = 9.8m/s2 acceleration (unit g) = 0.002 * f2 (frequency units HZ) * D (amplitude units mmp-p)
