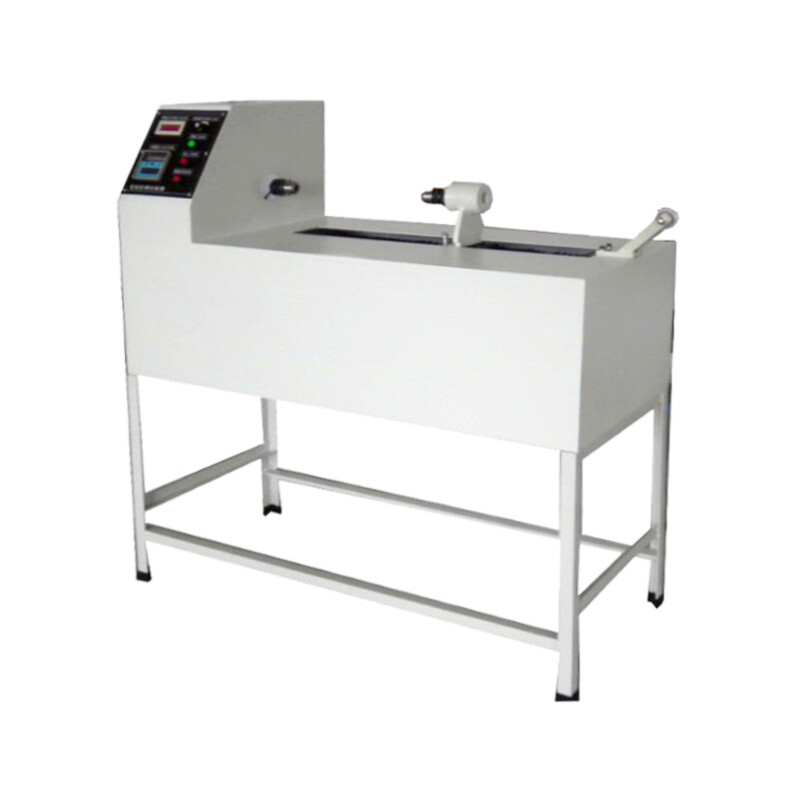

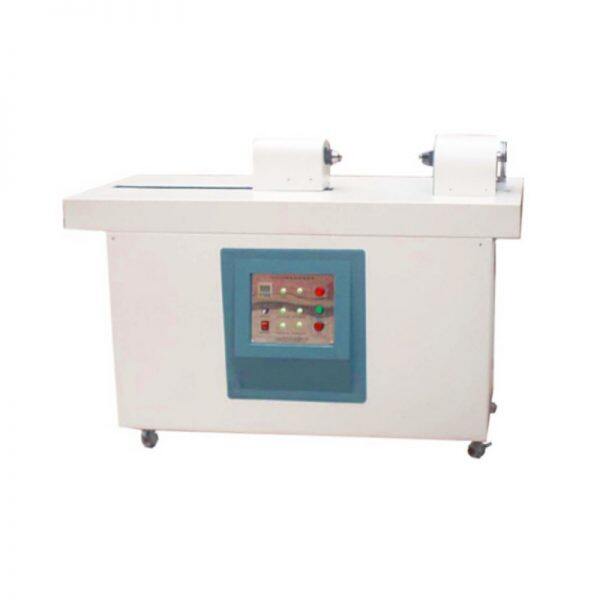

ZL-1015 Bare Metal Wire Torsion Testing Machine

This machine is suitable for conducting torsion tests on wire materials. Test the torsional strength of various metal wires and the torsional strength of insulation skin to evaluate the reliability of the product. The testing method involves clamping one end of the sample and fixing it in place, while continuously rotating and twisting the other end 360 degrees. After a certain number of twists, observe the degree of damage to the product.

Technical Parameters:

1. Fixture spacing: adjustable from 0 to 500mm
2. Test lifting weight: The weights are 500g and 1000g, each with one weight that can be selected for use
3. Twist angle: adjustable from 0 to 360 degrees (CNC mode)
4. Power rotation mode: Adopting stepper motor PLC programming control, easy to operate.
5. Control mode: button based control, all functions are displayed digitally, easy to understand.
6. Test speed: 0.1-0.5 RPM (adjustable) per minute and displayed in the window
7. Counting function: 0 to 999999 times can be set, and when the set value is reached, the machine will automatically stop without manual supervision
8. Machine volume: 800 × 350 × 850mm
9. Machine weight (approximately): 80kg
10. Working power supply: AC220V/50Hz 3A
