ZL-1506B Surface Roughness Tester

Products

ZL-1506B Surface Roughness Tester

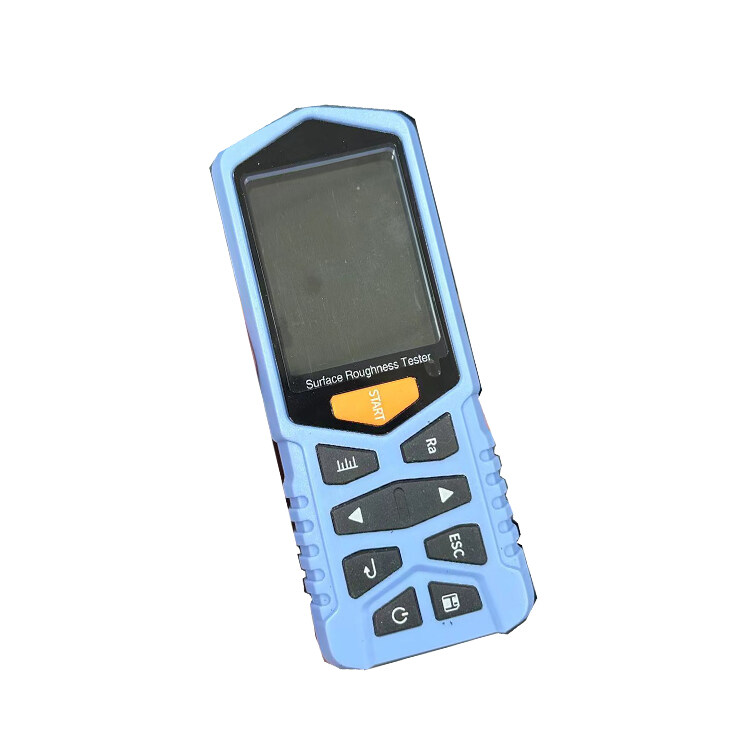

1506B白底

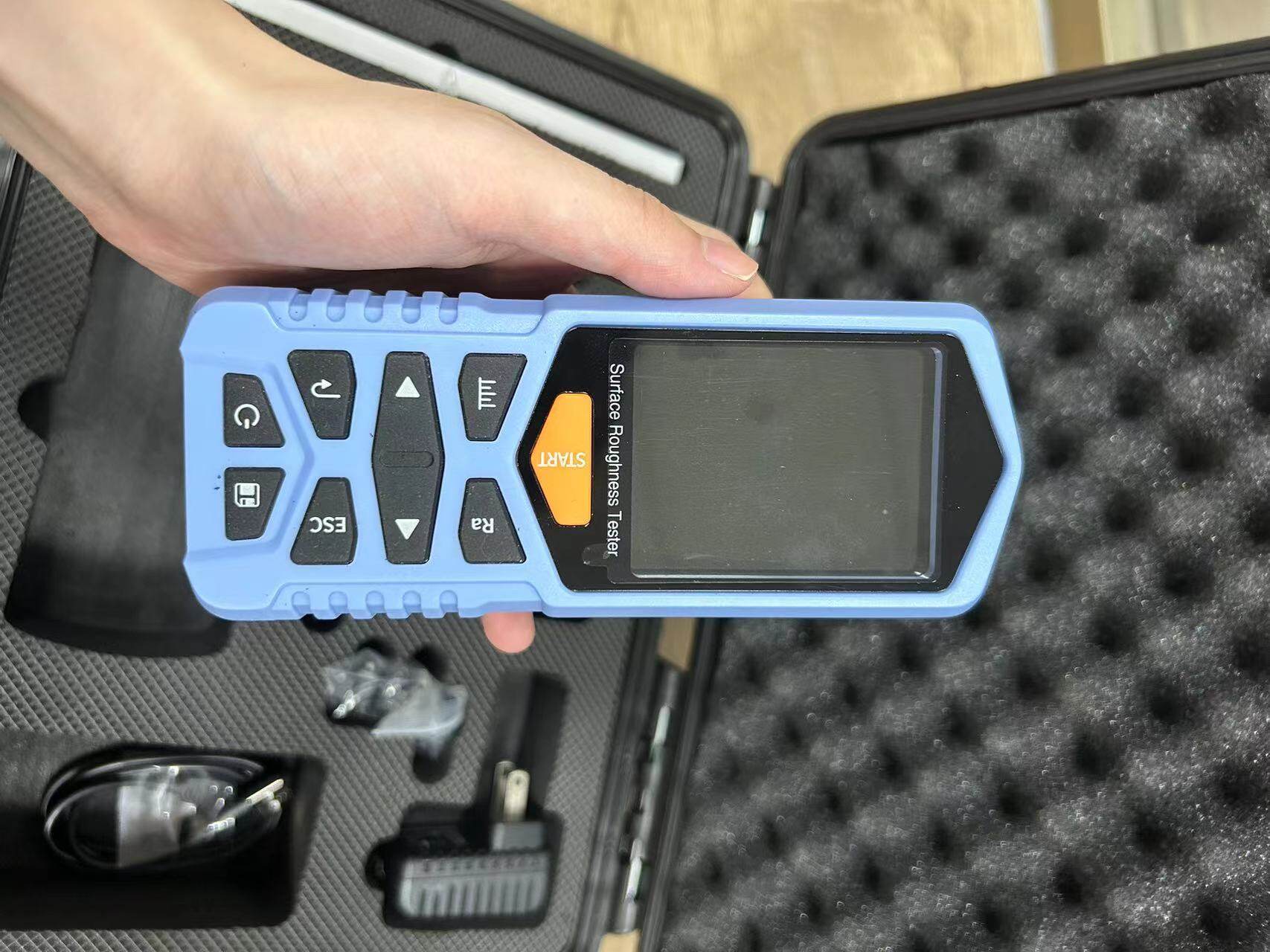

1506B(6)

Five optional sensors for measuring special shaped work-pieces.
DSP chip controlled achieveshigh accuracy and fast testing
Matrix LCD screen displays all parameters and
13 parameters:Ra、Ry、Rq、Rz、Rt、RSm、RS、Rp、Rv、R3z、RSk、Rmax、Rmr
4filtering methods: RC, PC-RC, GAUSS and D-P.
High quality with ISO/ DIN/ CE/ JIS/ FCC
Memory: 100 groups of measuring data.
Power supply: 3.7V rechargeableLi-ion battery.
Available PC software for data management and Excel reports.
Optionalprinter connecting by USB.

Features

Five optional sensors for measuring special shaped work-pieces.
DSP chip controlled achieveshigh accuracy and fast testing
Matrix LCD screen displays all parameters and
13 parameters:Ra、Ry、Rq、Rz、Rt、RSm、RS、Rp、Rv、R3z、RSk、Rmax、Rmr
4filtering methods: RC, PC-RC, GAUSS and D-P.
High quality with ISO/ DIN/ CE/ JIS/ FCC
Memory: 100 groups of measuring data.
Power supply: 3.7V rechargeableLi-ion battery.
Available PC software for data management and Excel reports.
Optionalprinter connecting by USB.

Standard Sensor

Detection Principle	Inductive
Material of stylus	Diamond
Radius of stylus	5μm
Stylus force	4mN(0.4gf)
Contact angle	90°

Technical Specification：

Model No.	leeb432A
Roughness parameters	Ra、Ry、Rq、Rz、Rt、RSm、RS、Rp、Rv、R3z、RSk、Rmax、Rmr
Measuring range	Ra:0.005-16μm Rz:0.02-160μm
Resolution	0.001μm
Maximum driving trip	17.5mm/0.7inch
Sample length/Range (L)	0.25mm, 0.8mm, 2.5mm/±20μm,±40μm,±80μm
Evaluation length	1.25mm, 4mm,5mm/Option from(1-5)L
Filtering methods	RC, PC-RC, GAUSS, D-P,
Error of indication	≤±10%
Variation of indication	<6%
Memory	100 Groups
Operating temperature	0 ºC -40 ºC
Weight	440g
Dimensions	119×47×65mm

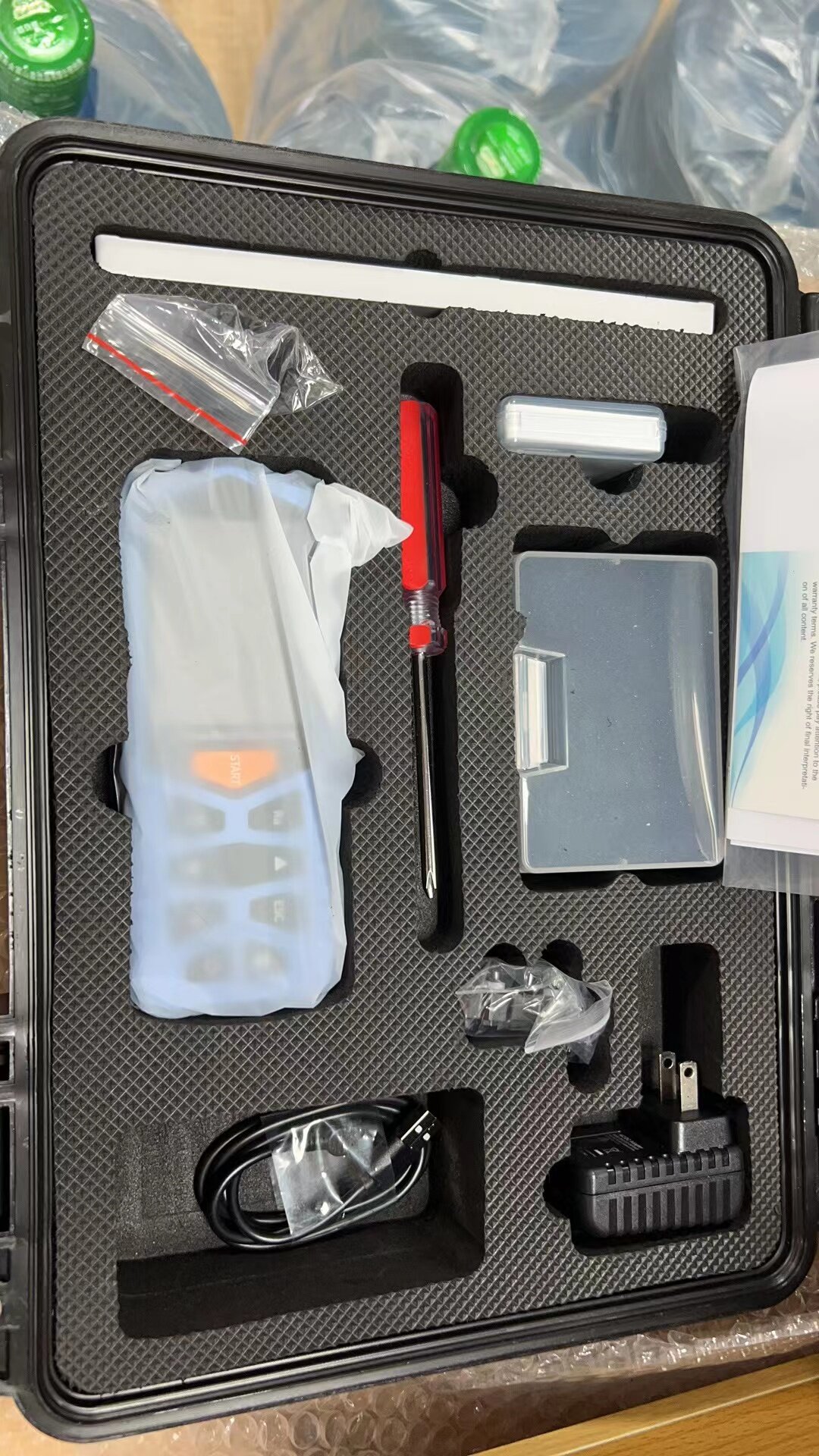

Standard configuration	Main Unit,Standard sensor,Calibration block, Supporting platform, Power charger, Manual,Certificate, Warranty card, PC analysis software
Optional Accessories	Measurement Platforms , optional sensors, printer
