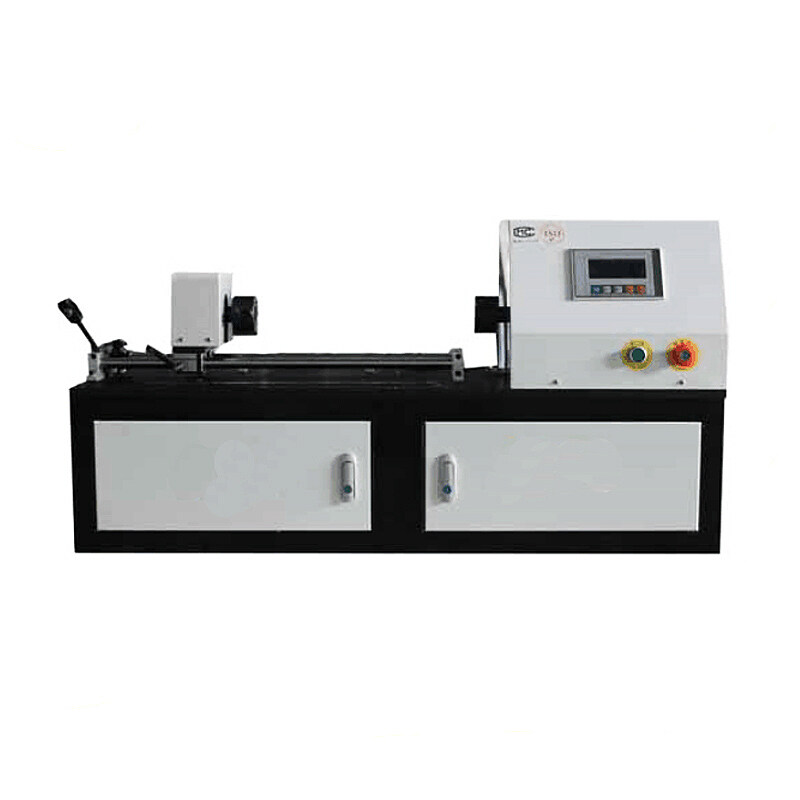

The metal wire twisting tester is suitable for measuring the ability of a metal wire with a diameter (or feature size) of 0.1-10.0 mm to withstand plastic deformation in a one-way or two-way twisting and to display defects on the surface and interior of a wire material (actually with a 0.06-3 mm test fixture. ).
Categories:
Material machine for testing torsion Name: metal wire torsion testing machine
The main technical parameters and working conditions
PLC touch screen controller.
Torque measure range: 1~10 N.M
Torque angle : 0-360 °adjustable
Torque speed:0.01~1000°/min
Grip move distance:0-300mm (front)0-150mm (Back)
Pneumatic clamp method
Jaw hardness HRC55-65
Weight tolerance of plus or minus 0.01%
The work of testing machine noise is less than 70dB
Environment and working conditions
The temperature of 10-35 DEG C
Placed in a stable basis, the level of degree < 0.2 per thousand
In the absence of vibration environment
No corrosive medium
The power :220V 1 Phase 50HZ
