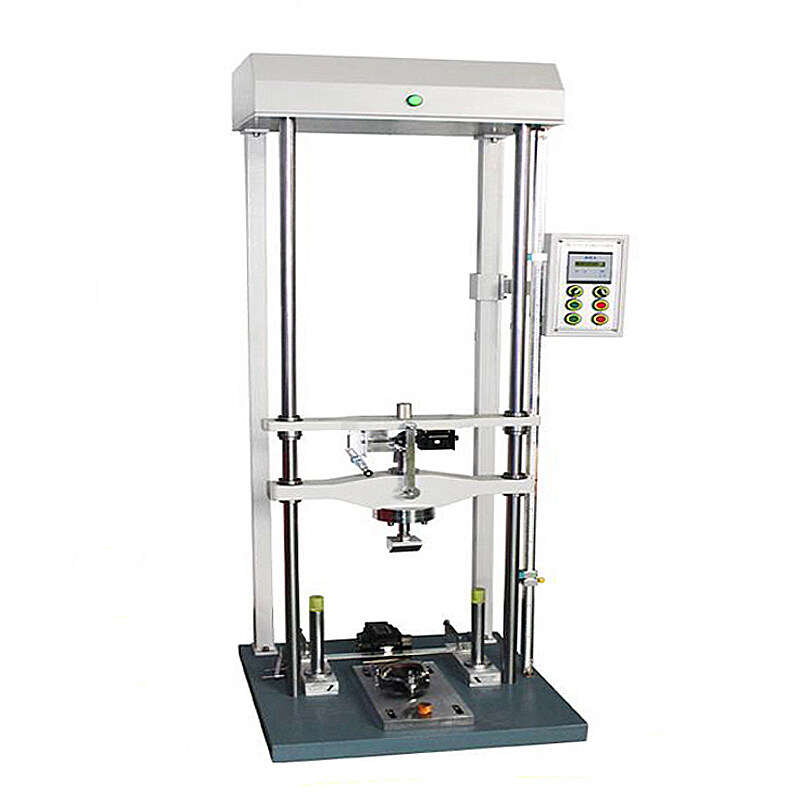

This machine is installed a steel striker adaptered to fall freely on vertical guides from a predetermined height to give the required impact energy to the toe of safety footwear for measuring the degree of the dent. In addition, the toecap should not develop any cracks on the test axis with go through the material.
This machine is installed a steel striker adaptered to fall freely on vertical guides from a predetermined height to give the required impact energy to the toe of safety footwear for measuring the degree of the dent. In addition, the toecap should not develop any cracks on the test axis with go through the material.
Standard:
It complies with BS-953, EN-344, ANSI-41, CSA-Z195, ISO 8782
Technology Parameters:
|
Striker Weight |
(EN) 20±0.2kg, (BS, ANSI) 22.7KG |
|
Drop Height |
0~1100mm auto adjustable |
|
Impact Energy |
(EN)200J, (BS, ANSI)1002J |
|
Striker |
(EN)3±0.1mm, (ANSI)ø25.4 |
|
Dimension |
70×70×180cm |
|
Weight |
185kg |
|
Power |
AC220V/50Hz or others |
