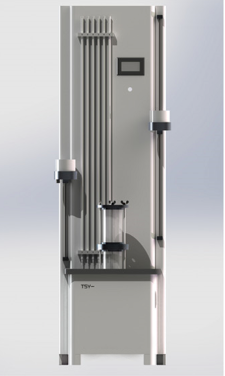

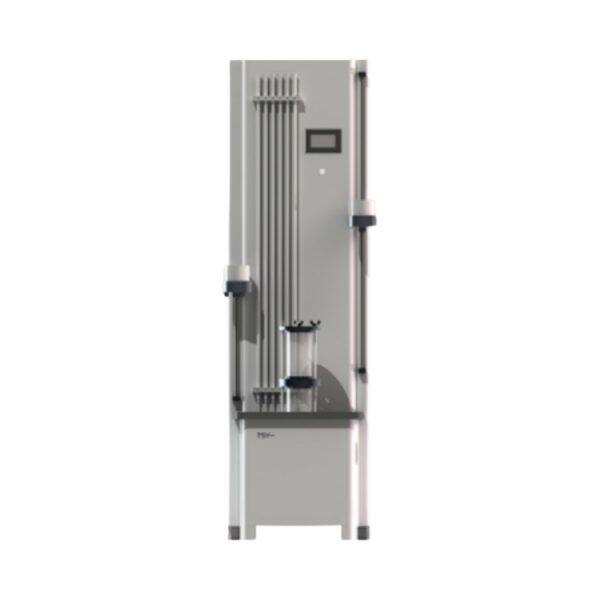

It is suitable for the filter layer test of geosynthetic materials. It is developed and manufactured according to JTG E50, SL235 and other standards to measure the permeability coefficient and permeability ratio of the soil and geotextile system and its interface under certain water flow conditions, and to determine the mud content of the geotextile. As a filter layer of a certain soil, geosynthetics will cause unacceptable clogging. The fouling test penetration fixture adopts alloy material on both sides and organic material in the middle, which has good sealing performance and convenient and fast loading and unloading of samples.
Technical parameters
|
1. Inner diameter of test tube |
Ф100mm |
|
2. Thickness of soil sample |
100mm |
|
3. Screen aperture |
6mm |
|
4. Graduation value of pressure measuring tube |
1mm |
|
5. Temperature measurement range |
5~50℃ |
|
6. Power supply |
220V, 50Hz |
|
7. Dimensions |
800×700×2070mm |
|
8. Weight of the whole machine |
125Kg |
