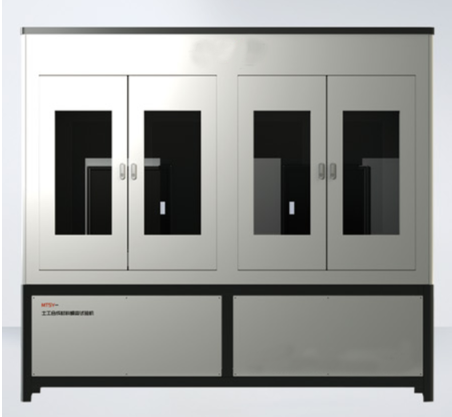

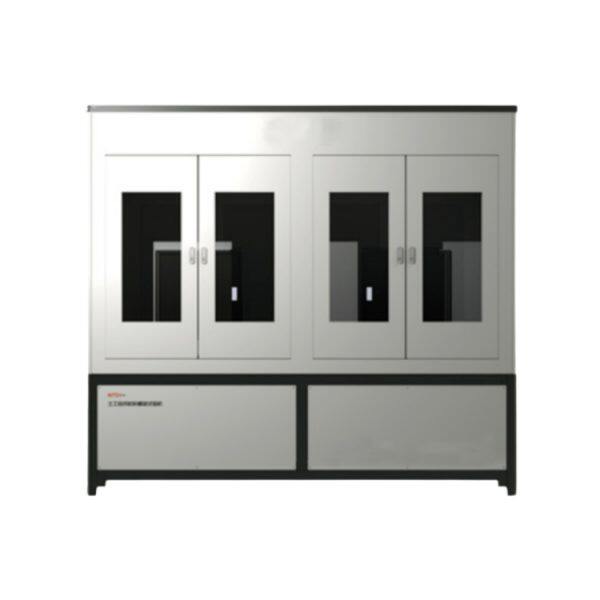

Test for tensile creep and tensile creep rupture properties of geotextiles and related products. Suitable for products that may collapse in the structure due to premature failure or due to their creep affecting reinforcement in the structure. The instrument consists of three parts: data acquisition and processing part, lever weight loading part, and main frame. The whole test process can be controlled by a microcomputer, and the test data can be collected automatically and regularly, or the data can be collected manually.
Standard:
ISO 13431, GB/T 17637, JTG E50 , SL 235
Technical parameters
|
1. Maximum load |
20KN |
|
2. Load accuracy |
≤±1% |
|
3. Fixture width |
50mm and 200mm optional |
|
4. Effective creep space |
800mm |
|
5. Effective test width |
350mm |
|
6. Displacement measurement accuracy |
0.03mm |
|
7. Time measurement error |
≤±1% |
|
8. Dimensions |
2300×550×1850 mm |
