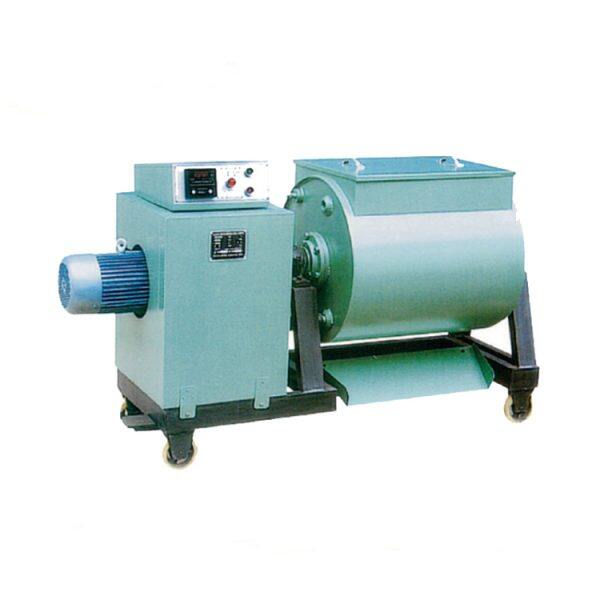

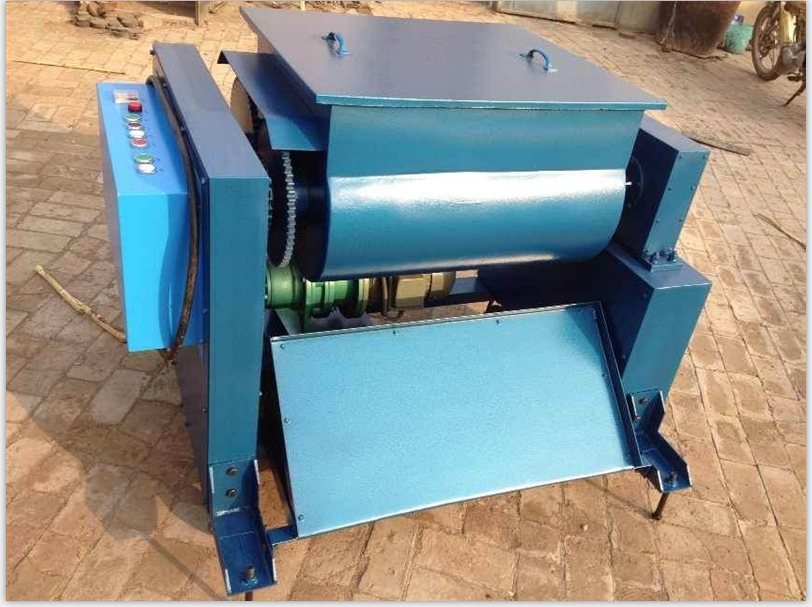

The product structure has been included in the national industry mandatory standard “Concrete Test Mixer” (new revision) (JG244-2009), and the product performance meets the standard requirements. This machine is suitable for the laboratory of construction research institutes, construction companies and concrete component units. It can mix ordinary concrete, lightweight concrete and dry-hard concrete. It can also be used in other industry laboratories to mix different materials. This machine is easy to operate, has high mixing efficiency, small residual amount, and is easy to clean. It is an ideal concrete mixing equipment for laboratory use.
Technical Specifications:
|
1. Structural type |
double horizontal shaft |
|
2. The maximum stirring capacity is 60 liters |
|
|
3. Power supply voltage |
380V 50HZ |
|
4. Stirring motor power |
3.0KW |
|
5. Stirring time |
adjustable |
|
6. Power of tipping and unloading motor |
0.75Kw |
|
7. Mixer speed |
55 rpm |
|
8. The maximum turning angle of the container |
110 degrees |
|
9. Material of mixing drum |
16Mn steel |
|
10. Material of stirring blade |
16Mn steel |
|
11. Clearance between blade and cylinder wall |
1mm |
|
12. Cylinder wall thickness |
10mm Blade thickness:12mm |
|
13. Dimensions (length, width and height) |
1100mm×950mm×1050mm |
|
14. Weight |
about 700Kg |
