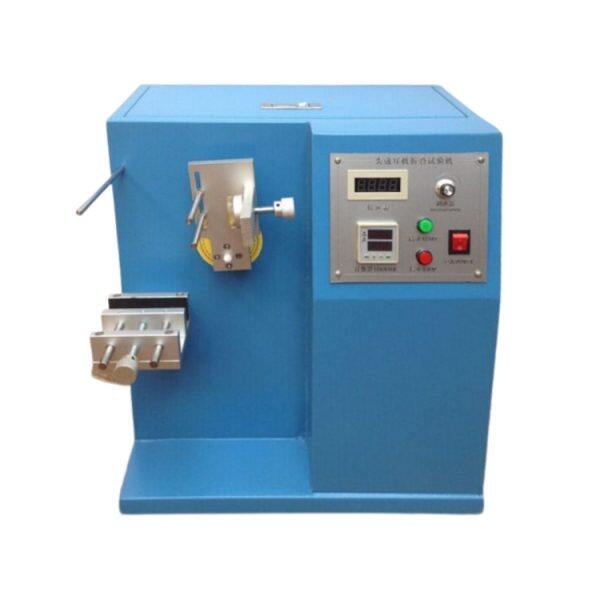

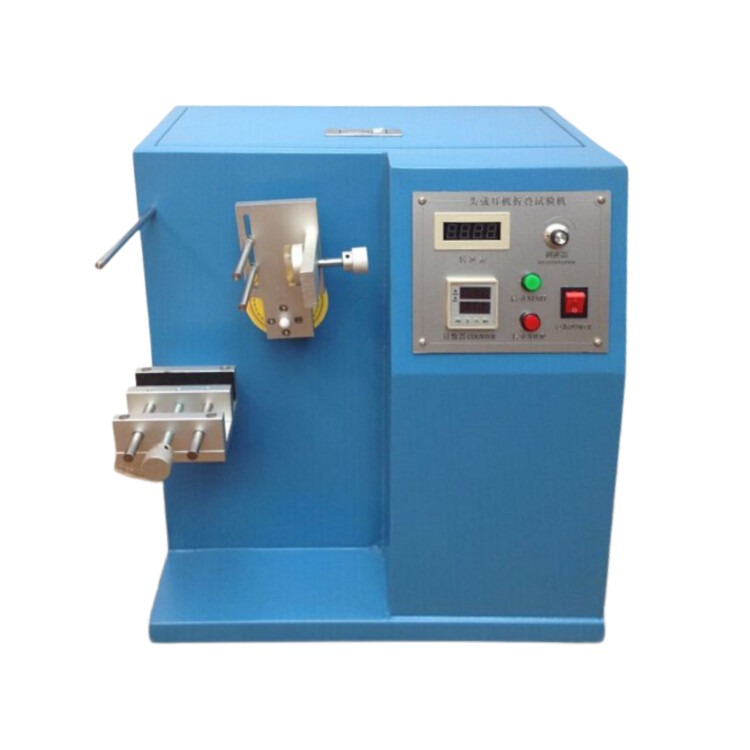

The earphone folding life test machine is suitable for the folding resistance strength test of folding headphone products. This machine is to fix one end of the test sample on the test fixture, and the other end on the folding test fixture. Driven by the transmission mechanism, the test product is repeatedly folded and tested. This machine complies with the “General Technical Standard for Headphones GB/T14471-93” headset folding test.
Overview of the machine:
The earphone folding life test machine is suitable for the folding resistance strength test of folding headphone products. This machine is to fix one end of the test sample on the test fixture, and the other end on the folding test fixture. Driven by the transmission mechanism, the test product is repeatedly folded and tested. This machine complies with the “General Technical Standard for Headphones GB/T14471-93” headset folding test.
The main technical parameters:
|
1. Test station |
one |
|
2. Test speed |
5-60 times/min (adjustable by knob, LCD display) |
|
3. Test angle |
5-120° (adjustable, the pointer indicates the dial) |
|
4. Test times counter |
0-99999999 times (can be preset, automatically stop when the number of times is reached, power-off memory function) |
|
5. Fixed fixture |
size-adjustable fixed fixture and movable fixture |
|
6. Fixture width |
20-60mm (adjustable, upon request) |
|
7. Test stroke |
±90 degrees |
|
8. Machine size (L×W×H) |
500×350×500mm |
|
9. Machine weight |
40kg |
|
10. Working power supply |
AC220V, 50HZ |
Product Features:
