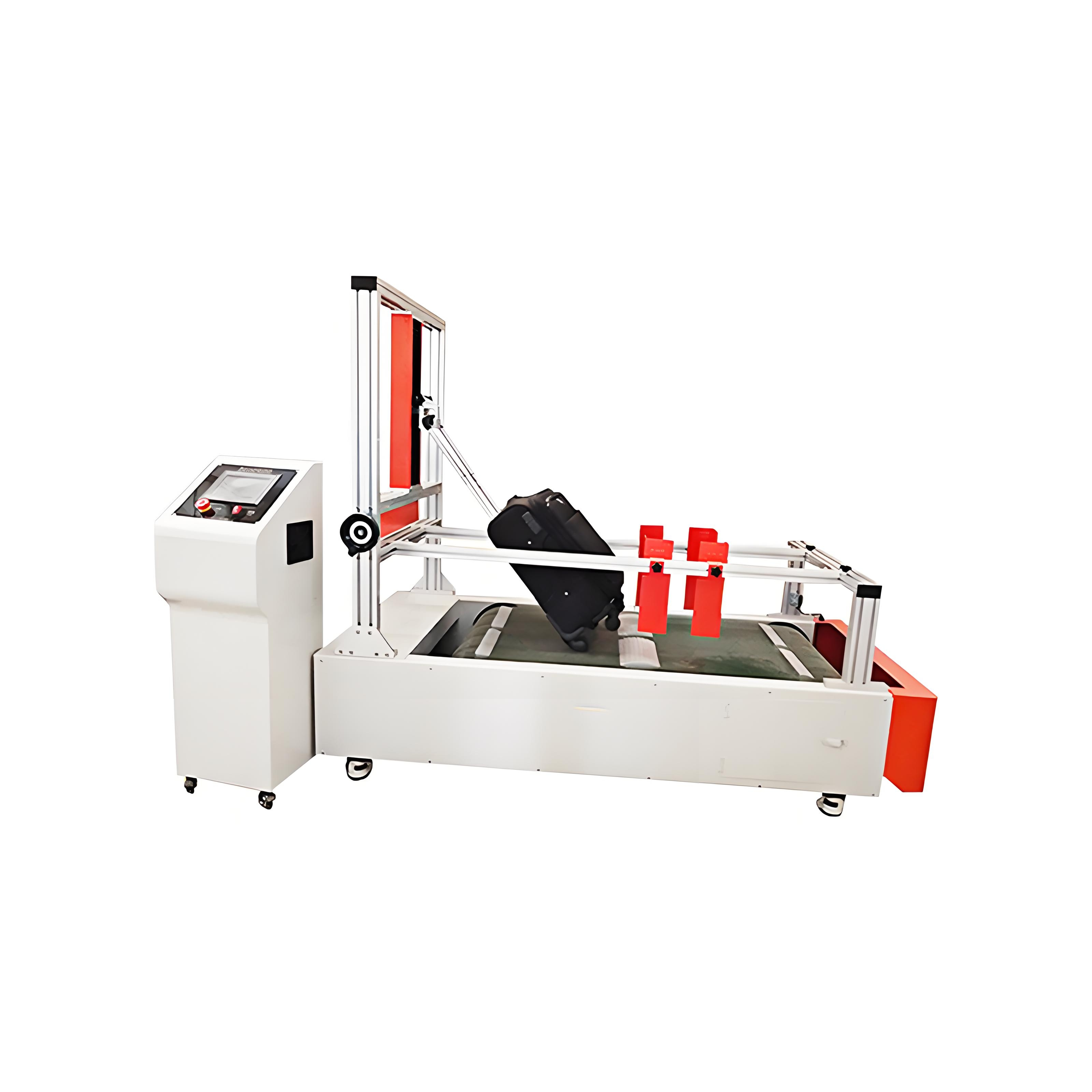

Instrument Purpose:
Used for the walking test of suitcases, travel bags, baby strollers, etc. with wheels attached, to test the quality of the leather box wheels during walking use. Through testing mileage and speed, the heat resistance, breakage, and wear of the leather box wheels are inspected, and the wear resistance of the wheel materials and the overall structure of the box are checked for any damage or deformation. The test results can be used as a reference for improvement.
Instrument Purpose:
Used for the walking test of suitcases, travel bags, baby strollers, etc. with wheels attached, to test the quality of the leather box wheels during walking use. Through testing mileage and speed, the heat resistance, breakage, and wear of the leather box wheels are inspected, and the wear resistance of the wheel materials and the overall structure of the box are checked for any damage or deformation. The test results can be used as a reference for improvement.
Design Standards:
QB/T 2920-2007
Technical Parameters:
|
Control Mode |
Color touch screen (convenient and practical), human-machine interface operation mode. |
|
Testing Function |
The interval time during the testing process can be adjusted and has memory function |
|
Test Speed |
0-4km/h (adjustable) |
|
Dual Sensing Device |
A.If the wheel falls off halfway, it will automatically stop the machine B. Pull rod fracture induction automatic shutdown |
|
Test Angle Adjustment |
Quick wheel shaking adjustment (and anti pull rod downward device during two wheel testing) |
|
Obstacle Block Board |
New National Standard Obstacle Blocks (6 for large obstacles and 6 for small obstacles) |
|
Belt Specification |
Conveyor belt length 3300mm |
|
Dimensions |
200 * 100 * 160cm |
|
Power Supply |
AC220V 50HZ |
