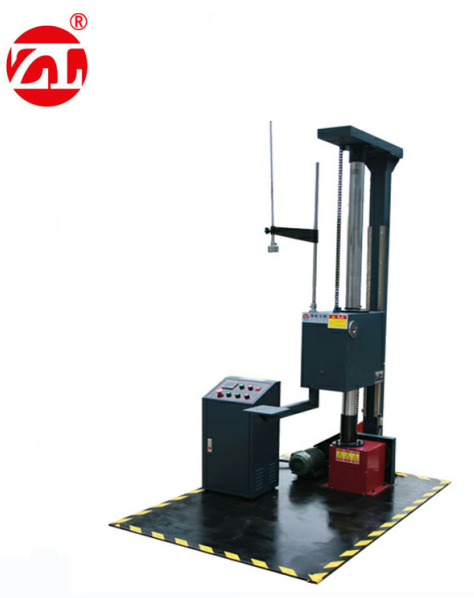

This machine is used to test the degree of damage to various products after being packaged by a free fall impact. It can test the rhombus, corners, and surfaces of packaging containers, and evaluate the impact strength of electronic components when they are dropped during transportation. It is mainly used for, Thereby improving and perfecting the packaging design.
Application Industries:
It is an ideal testing and research equipment suitable for various factories and enterprises, technical supervision departments, commodity inspection agencies, scientific research institutes, universities and other departments.
Standards:
ISO 2248, JIS Z0202, ASTM D5276, GB/T4857.5
Technical Parameters:
|
Model |
ZL-9002B |
|
Test Height |
30~150cm can be customized |
|
Maximum Weight Of Test Piece |
100kg |
|
Maximum Size of Test Piece |
1000×800×1000mm |
|
Single Arm Support Length |
30cm |
|
Drop Error |
±5mm |
|
Drop Plane Error |
<1° |
|
power Supply |
AC 380V, 50Hz |
|
Machine Size |
1700×1200×2515mm |
|
Machine Weight |
600kg |
The Comparison Table of the Package Weight and Dropping Height:
|
Weight |
Height |
||||
|
No less than |
Less than |
Free-drop |
|||
|
Lbs |
Kg |
Lbs |
Kg |
Inch |
mm |
|
0 |
0 |
21 |
10 |
30 |
760 |
|
21 |
10 |
41 |
19 |
24 |
610 |
|
41 |
19 |
61 |
28 |
18 |
460 |
|
61 |
28 |
100 |
45 |
12 |
310 |
|
100 |
45 |
150 |
68 |
8 |
200 |
Operation of Control Chamber
