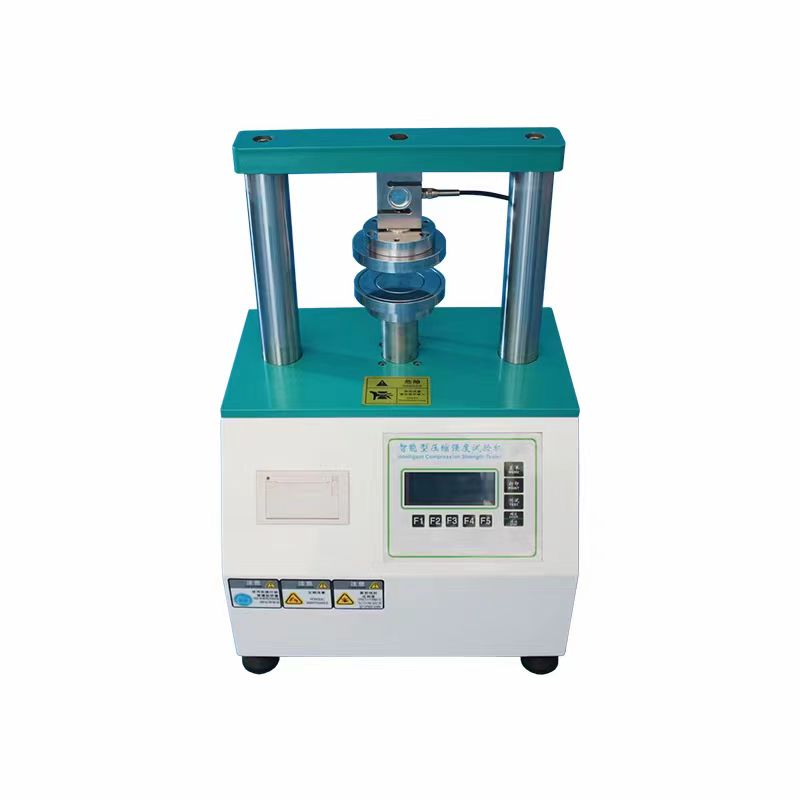

This machine is used to test the compressive strength of corrugated paper and kraft paper in the upright direction. It can carry out the ring crush strength test of cardboard and core paper under specified conditions, and this machine can also be expanded to include the flat crush strength test, compressive strength test, adhesion test and general compression test of corrugated paper. At the same time, this machine can also be used with The advanced high-precision load device and load display enable the load value to be directly displayed and read out.
The Main Function:
This machine can conduct a variety of paper quality tests for paper. It can perform 5 tests including ring pressure (RCT), flat pressure (FCT), edge pressure (ECT), adhesion (PAT) and general pressure resistance (CMT). It is a combination of This multi-function testing equipment is the best choice for the paper industry. Optional cutter:
Main Feature:
The microcomputer ring compression strength testing machine adopts microcomputer control, double-column frame, sensor force measuring system, and stepless speed regulation. It has a novel structure, accurate digital processing, simple operation, and is easy to use and maintain. It is the most economical ring compression strength testing machine currently on the market.
Standard:
This testing machine is manufactured in accordance with CNS national standards and designed in accordance with the instrument requirements of the paper and cardboard inspection method. It complies with GB2679.8 “Method for determination of ring pressure strength of cardboard”, GB6546 “Method for determination of edge pressure strength of corrugated cardboard”, GB6548 “Method for determination of adhesive strength of corrugated cardboard” “Method for Determination of Bonding Strength” and GB2679.6 “Method for Determination of Flat Compressive Strength of Corrugated Cores”, TAPPIT811 “Test Standard” and other standards.
Technical Parameters:
|
Model |
ZL-9003B |
|
Capacity Selection |
200kg |
|
Compression Speed |
12.7±3.0mm/min (or according to customer’s order and stepless speed adjustment) |
|
Constant Speed |
12.7,25.4,38.1,50.8,60mm/min |
|
Compression Disk Size |
Φ130mm |
|
Compression Spacing |
80mm |
|
Ring pressure Specimen |
152.4*12.7mm |
|
Edge Pressure Specimen |
25*100mm |
|
The ring pressure testing machine can optionally be equipped with a clamp to conduct the following tests |
Equipped with a ring pressure test center disk and a special ring pressure sampler to conduct cardboard ring pressure strength tests (RCT) |
|
Equipped with edge pressure (bonding) sample sampler and auxiliary guide block to conduct edge pressure strength test (ECT) of corrugated cardboard |
|
|
Equipped with a peel strength test stand to conduct corrugated cardboard adhesion (peel) strength test (PAT) |
|
|
Equipped with a flat compression sampler to conduct flat compression strength test (FCT) of corrugated cardboard |
|
|
Standard Configuration |
Two auxiliary guide blocks for edge pressure |
|
Power Supply |
220V 50Hz |
|
Weight |
75kg |
|
Machine Size |
480×480×600mm |
