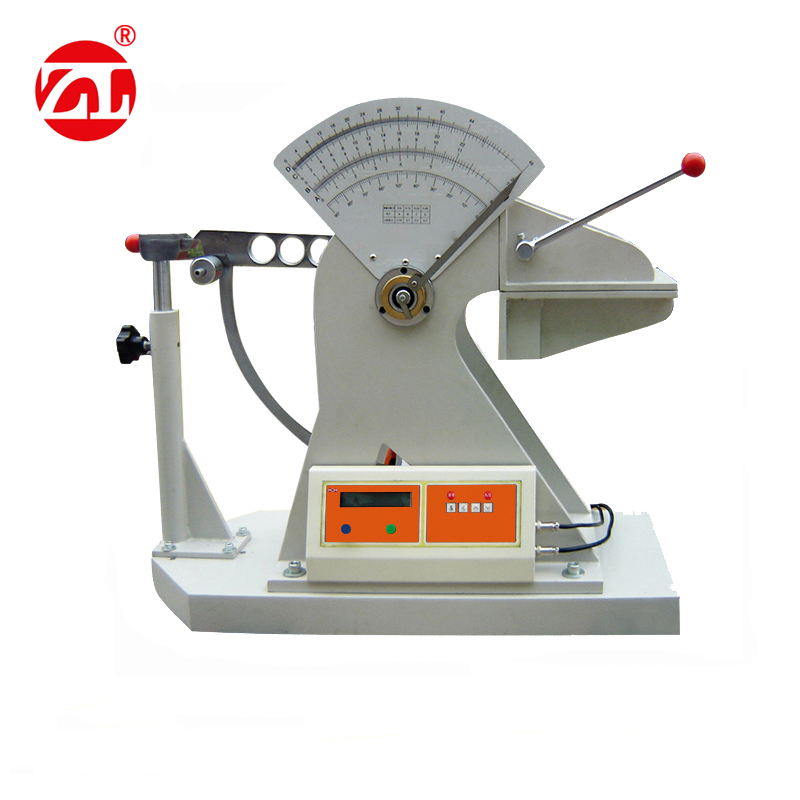

The corrugated cardboard puncture tester is a special instrument for measuring the puncture resistance (ie puncture strength) of corrugated cardboard. This instrument has the characteristics of rapid compression, automatic reset of the operating handle, reliable safety protection, and LCD display.
The Main Function:
The puncture instrument is composed of a pendulum sample clamping device, a pointer dial, a pyramid (puncture head) and an operating system. According to the functional principle, the instrument installs a triangular prism pyramid designed and produced according to standard geometry on a special-shaped pendulum body, and uses the energy of the pendulum body to make the triangular pyramid penetrate the sample with the energy required.
Main Feature:
Full electronic control technology, open structure, high automation program, simple and convenient operation, safe and reliable.
Fully automatic measurement, intelligent judgment function, operating system displays measurement results in real time.
Automatic measurement and statistical test results; simple and convenient to use;
Modern design concept of electromechanical integration, compact structure, beautiful appearance and easy maintenance;
Standard:
The product is designed in accordance with the relevant provisions of ISO3036 (Paperboard – Determination of Puncture Strength) and GB2679·7 “Method for Determination of Puncture Strength of Paperboard”
Application Industries:
It has a wide range of applications and is an indispensable common instrument for enterprises and departments such as cardboard and carton production, scientific research and commodity inspection.
Techinical Parameter:
|
Model |
ZL-9006 |
|
|
Measuring Range |
(1~48)J |
|
|
Trial Value Error
|
A ruler ± 0.05J |
Within the range of 20% to 80% of the upper limit of each level of measurement |
|
B ruler ± 0.1J |
||
|
C ruler ± 0.2J |
||
|
D ruler ± 0.5J |
||
|
Pointer Friction |
<0.25J |
|
|
Balance Shaft Friction And Air Resistance |
>120 Times (Measured by the number of arm swings) |
|
|
Pointer Friction |
The length of the three bottom sides is 60mm×60mm×60mm, and the height is (25±0.7)mm. Edge fillet radius (1.5±0.1)mm |
|
|
Balance Shaft Friction And Air Resistance |
20℃±10℃ |
|
|
Pyramid Characteristic Dimensions |
220V±22V, the power supply should be reliably grounded |
|
|
Work Temperature |
Keep it clean, the workbench should be flat and stable, and there should be no source of vibration. |
|
