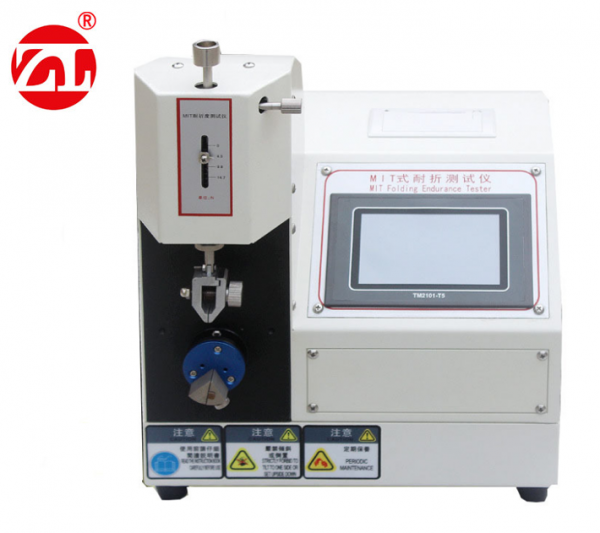

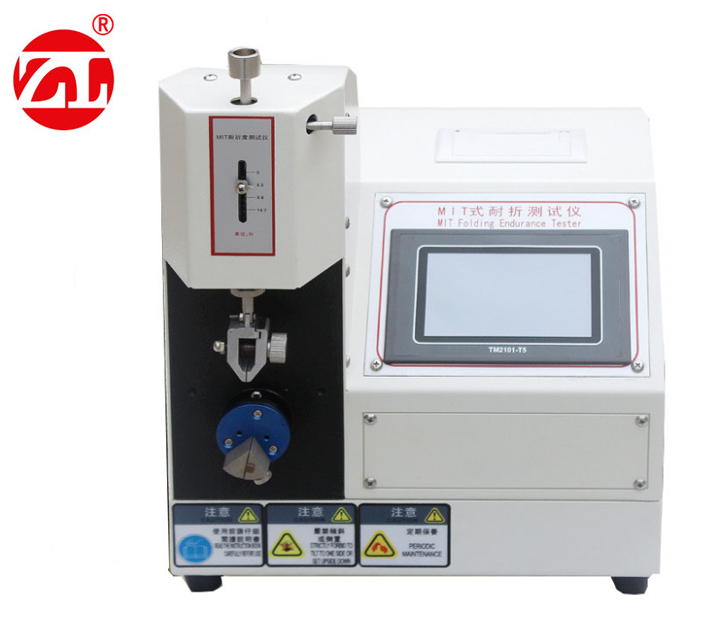

MIT type folding endurance tester is a new type of instrument developed according to the national standard GB/T 2679.5-1995 (Determination of folding endurance of paper and cardboard). The instrument has various parameter testing, conversion, adjustment, display, memory, and printing included in the standard. It has data processing functions and can directly obtain statistical results of various data. The instrument has compact structure, small size, light weight, full functions, bench-type placement, easy operation and stable performance. It is suitable for measuring the folding endurance of various papers, cardboards and materials.
The instrument can display the number of double folds in real time. After the experiment is completed, record the number of times of folding. Press the “Number/Logarithm” key to display the corresponding logarithmic value. Press the “Statistics” key to display the standard deviation and coefficient of variation. Press the “Print” key to print out the statistical report.
Standards:
GB/T2679.5-1995 Determination of folding endurance of paper and cardboard (MIT folding endurance tester method)
Technical Parameters:
|
Model |
ZL-9007A |
|
Measuring Range |
0~99999 times |
|
Folding Angle |
135±2° |
|
Folding Speed |
175 ± 10 times / min |
|
Spring Tension |
4.9N、9.8N、14.72N |
|
Range of Clamp |
3mm |
|
Printer |
Modular one-in thermal printer |
|
Working Environment |
Temperature (0~35) ℃, humidity <85% |
|
External Dimensions |
300*350*450mm |
