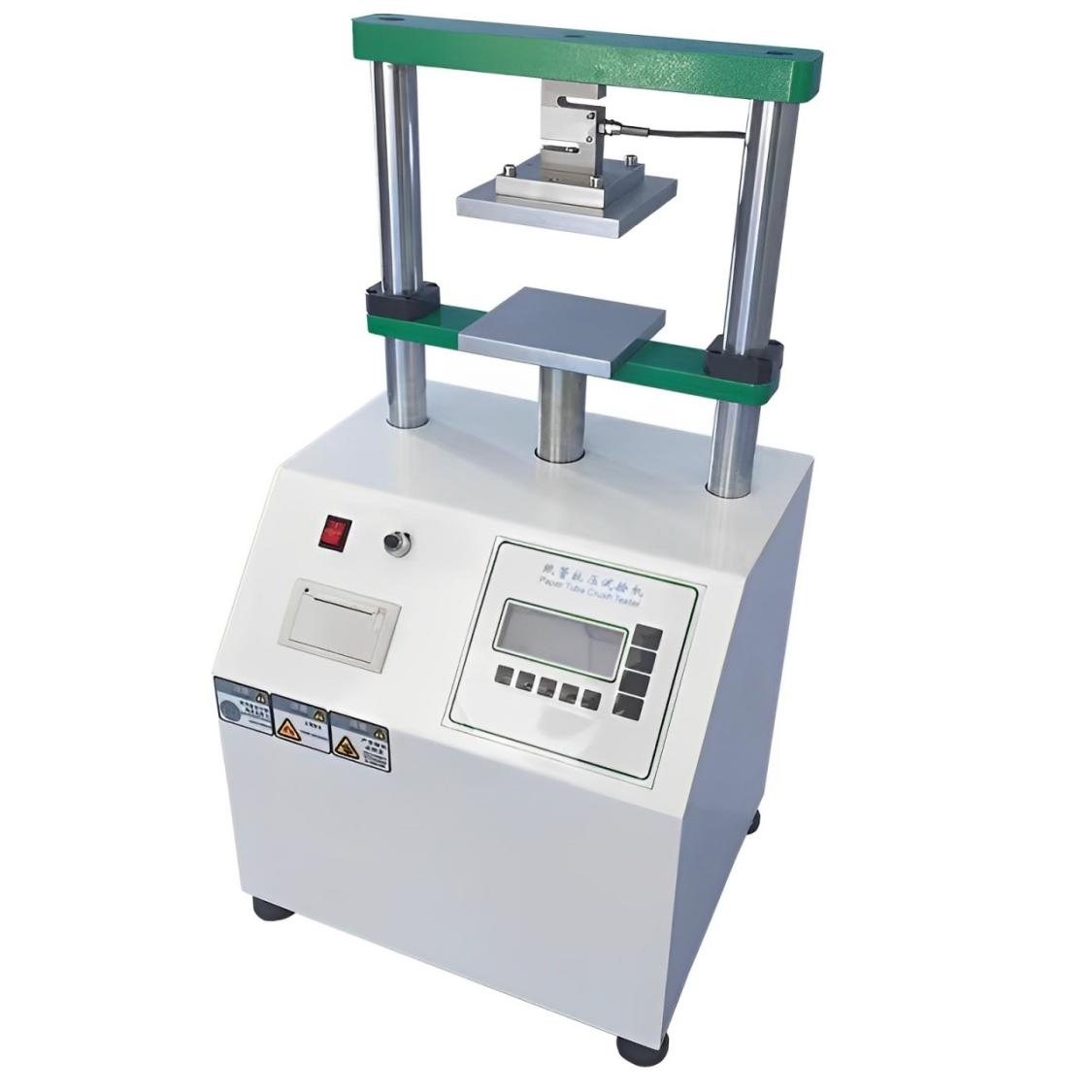

It is suitable for paper tubes with an outer diameter of 200mm. It is also called paper tube pressure testing machine and paper tube compression testing machine. It is the basic instrument for testing the pressure resistance of paper tubes. It adopts high-precision sensors and high-speed processing chip design to ensure sampling accuracy. .
Features:
After the test is completed, it has an automatic return function to automatically determine the crushing force and automatically save the test data;
Adjustable speed, full Chinese LCD display operation interface, multiple units to choose from;
Equipped with a micro printer, which can directly print test results.
Standards Compliant:
BB/T 0032 paper tube
ISO 11093-9 Paper and paperboard Determination of paper core Part 9: Determination of flat crush strength
GB/T 22906.9 Determination of paper core Part 9: Determination of flat crush strength
GB/T 27591-2011 Paper bowl
Technical Indicators:
|
Capacity |
5000N |
|
Paper Tube Outer Diameter |
200 mm |
|
Pressure Plate Area |
150*150mm |
|
Distance Between Upper and Lower Platens |
200mm |
|
Test Speed |
10～150 mm/min |
|
Force Resolution |
1/200000 |
|
Display Resolution |
1 N |
|
Accuracy Level |
Level 1 |
|
Displacement Units |
mm, cm, in |
|
Force Units |
kgf, gf, N, kN, lbf |
|
Stress Units |
MPa, kPa, kgf/cm2, lbf/in2 |
|
Control Method |
Microcomputer control (optional computer operating system) |
|
Display Mode |
Electronic LCD display (computer display optional) |
|
Software Function |
Chinese and English language exchange |
|
Stop Mode |
Overload shutdown, automatic shutdown when specimen is damaged, automatic shutdown when upper and lower limits are set |
|
Safety Device |
Overload protection, limit element protection device |
|
Machine Power |
AC variable frequency motor drive controller |
|
Mechanical System |
High-precision ball screw |
|
Power Supply |
AC220V/50HZ~60HZ 4A |
|
Machine Weight |
About 120 kg |
