Humidity Meter Parameters:
|
Nambe |
Thermometer |
Model |
ZL-9023 |
|
|
Function |

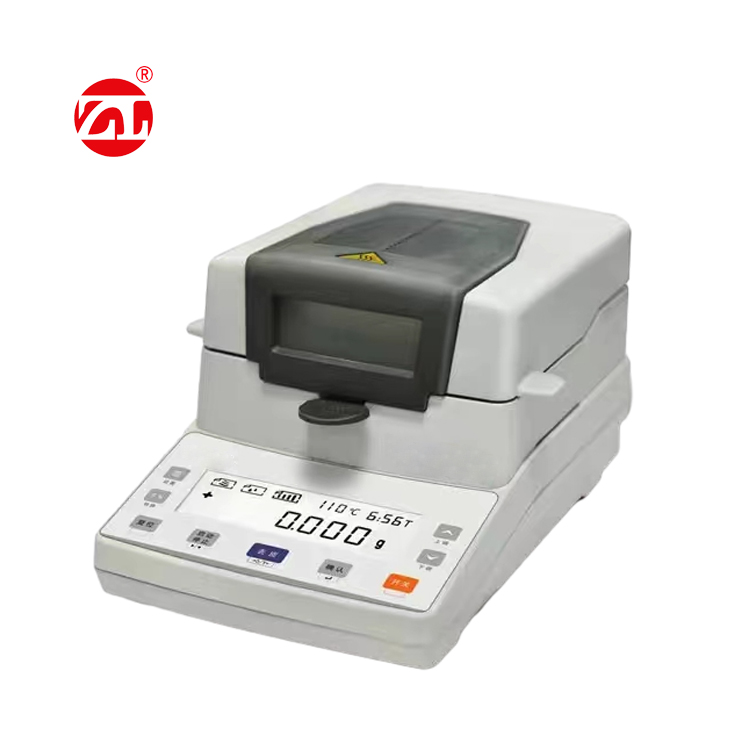

It is a fast moisture testing instrument that adopts the principle of halogen lamp thermogravimetry. Compared with the international oven heating method, halogen heating can reach the maximum heating power in the shortest time and quickly dry the sample at high temperature. The test results are consistent with the national standard oven. The method has good consistency, can be replaced, and the detection efficiency is much higher than the oven method. Generally, samples can be tested in just a few minutes, and it has the advantages of simple operation and accurate detection. It can display moisture value, dryness value, measurement time, temperature and other data. With computer and printer connection functions. |
|||
|
Key Technical Parameters |
Model |
ZL-SF110 |
ZL-SF105 |
ZL-SF100 |
|
Specification |
110g/5mg |
110g/2mg |
110g/1mg |
|
|
Readability |
5mg |
2mg |
1mg |
|
|
Pallet Size |
Φ90 |
|||
|
Heating Mode |
Halogen lamp |
|||
|
Show |
LCD Monitor |
|||
|
Operating Temperature |
5℃~35℃ |
|||
|
Temperature Setting |
40℃~199℃ |
|||
|
Time Setting |
1~99min |
|||
|
Automatic Transmission |
100%~999% |
|||
|
Automatic Transmission |
0%~999% |
|||
|
Time Setting |
1—99min |
|||
|
Water Range |
0.00%—100% |
|||
|
Water Readability |
0.01% |
|||
|
Remaining Dry Range |
100.00%—0.00% |
|||
|
Keep Dry And Readable |
0.01% |
|||
|
Electricity Supply |
AC (200-240),50Hz,0.2A |
|||
|
External Dimensions |
200(L)×180(W)×380(H) mm |
|||
|
Gross Weight |
5.8kg |
|||
